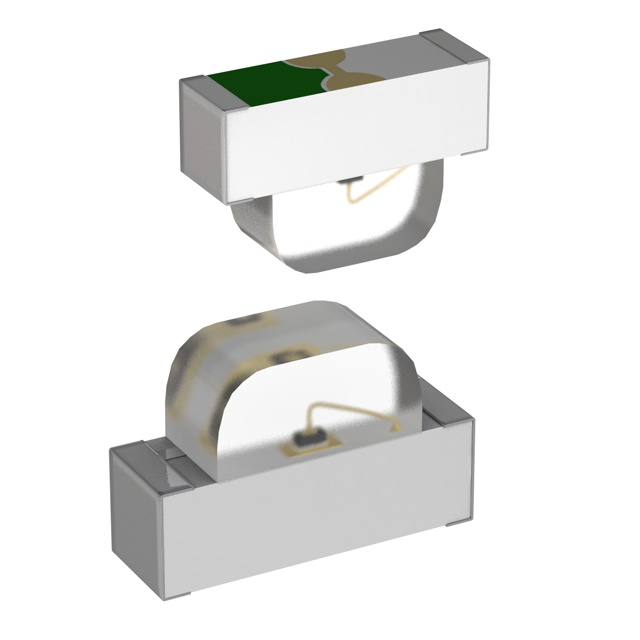

APA3010ZGC

Active

Kingbright

LED GREEN CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APA3010ZGC

Active

Kingbright

LED GREEN CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APA3010ZGC

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	250 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	525 nm
Wavelength - Peak	515 nm

APA3010 Series

Part	Lens Color	Mounting Type	Lens Style	Configuration	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Millicandela Rating	Lens Size [x]	Lens Size [y]	Wavelength - Dominant	Height (Max) [Max] [z]	Package / Case	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Viewing Angle	Wavelength - Peak	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Current - DC Forward (If) (Max) [Max]
Kingbright APA3010MGC	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	80 mcd	2 mm	1 mm	570 nm	1 mm	2-SMD No Lead	Clear	2.1 V	20 mA	Green	120 °
Kingbright APA3010ZGC	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	250 mcd	2 mm	1 mm	525 nm	1 mm	2-SMD No Lead	Clear	3.3 V	20 mA	Green	120 °	515 nm
Kingbright APA3010CGCK	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	60 mcd	2 mm	1 mm	570 nm	1 mm	2-SMD No Lead	Clear	2.1 V	20 mA	Green	120 °
Kingbright APA3010P3BT-GX		Surface Mount Right Angle											2-SMD No Lead							100 nA	100 mW	30 V	Side View	85 °C	-40 °C
Kingbright APA3010YC	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	7 mcd	2 mm	1 mm	588 nm	1 mm	2-SMD No Lead	Clear	2.1 V	20 mA	Yellow	120 °	590 nm
Kingbright APA3010SGC	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	15 mcd	2 mm	1 mm	568 nm	1 mm	2-SMD No Lead	Clear	2.2 V	20 mA	Green	120 °	565 nm
Kingbright APA3010YC-GX	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	8 mcd	2 mm	1 mm	588 nm	1 mm	2-SMD No Lead	Clear	2.1 V	20 mA	Yellow	120 °	590 nm
Kingbright APA3010SURCK-GX	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	Chip LED	80 mcd	2 mm	1 mm	630 nm	1 mm	2-SMD No Lead	Clear	1.95 V	20 mA	Red	120 °	645 nm
Kingbright APA3010F3C		Surface Mount Right Angle											2-SMD No Lead					120 °					Side View	85 °C	-40 °C	Infrared (IR)	0.4 mW/sr	940 nm	50 mA
Kingbright APA3010ZGC-GX	Colorless	Surface Mount Right Angle	Rectangle with Domed Top	Standard	2 mm	3 mm	SMD	400 mcd	2 mm	1 mm	525 nm	1 mm	2-SMD No Lead	Clear	3.3 V	20 mA	Green	120 °	515 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.22
		6000	$ 0.21
		10000	$ 0.21
		50000	$ 0.20

Description

General part information

APA3010 Series

Green 525nm LED Indication - Discrete 3.3V 2-SMD, No Lead
