RFB-1117-BT-03

Active

RF Industries

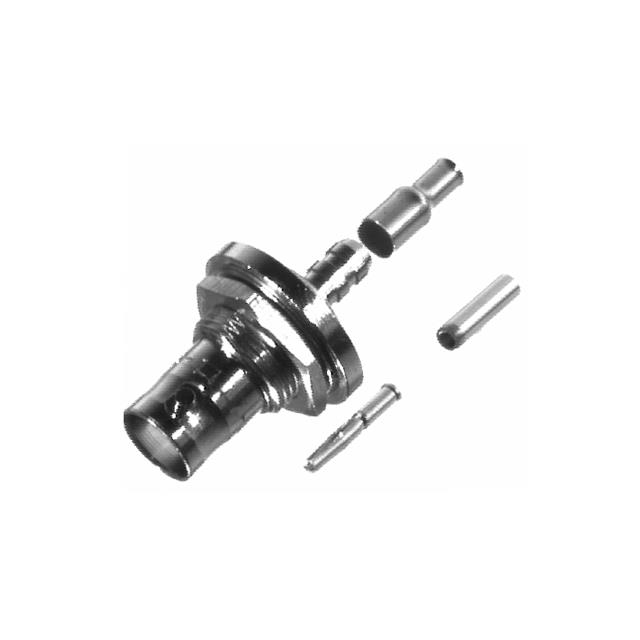

BNC FEMALE BH CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC FEMALE BH CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1117-BT-03

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Center Contact Material	Body Material	Housing Color	Mounting Feature	Fastening Type	Frequency - Max [Max]	Number of Ports	Contact Termination	Body Finish	Impedance	Connector Style	Center Contact Plating	Dielectric Material	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss
RF Industries RFB-1117-BT-03	Crimp	Phosphor Bronze	Brass	Silver	Bulkhead - Front Side Nut	Bayonet Lock	4 GHz	1	Crimp	Nickel	50 Ohms	BNC	Gold	Polytetrafluoroethylene (PTFE)	500 V	Female Socket Jack	-65 ░C	85 °C
RF Industries RFB-1117-BT	Crimp	Brass	Brass	Silver	Bulkhead - Front Side Nut	Bayonet Lock	4 GHz	1	Crimp	Nickel	50 Ohms	BNC	Gold	Polytetrafluoroethylene (PTFE)	500 V	Female Socket Jack			0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
