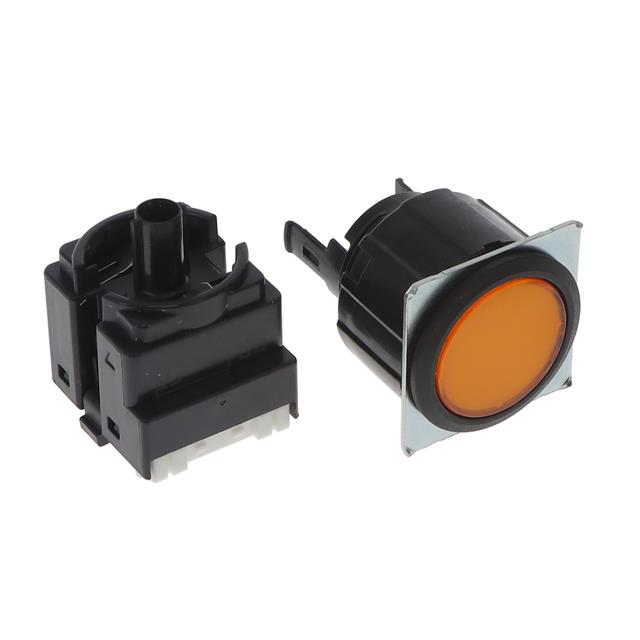

A3U-TBY-A2C-5M
ActiveOmron Electronics Inc-EMC Div
SWITCH PUSHBUTTON DPDT 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3U-TBY-A2C-5M
ActiveOmron Electronics Inc-EMC Div
SWITCH PUSHBUTTON DPDT 0.1A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3U-TBY-A2C-5M |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPDT |
| Color - Actuator/Cap | Clear (Yellow Filter/Diffuser) |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP65 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 25.2 mm |
| Switch Function | On-Mom |
| Termination Style | Connector |
| Type | Standard |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.86 | |
| 10 | $ 28.09 | |||
| 25 | $ 26.78 | |||
| 50 | $ 24.98 | |||
| 100 | $ 24.00 | |||
| 250 | $ 22.37 | |||
Description
General part information
A3U-TBY Series
Pushbutton Switch DPDT Standard Panel Mount, Front
