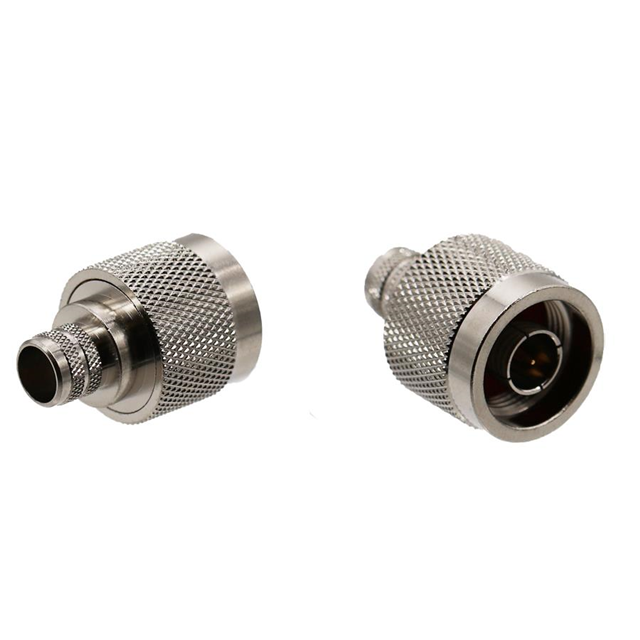

138-0449-001

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, LMR-400,

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, LMR-400,

Technical Specifications

Parameters and characteristics for this part

Specification	138-0449-001

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1400 V

Part	Connector Style	Insertion Loss	Body Finish	Frequency - Max [Max]	Mounting Type	Center Contact Material	Impedance	Cable Group	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Body Material	Voltage Rating	Mating Cycles	Center Contact Plating	Dielectric Material	Shield Termination	Connector Type
Cinch Connectivity Solutions Johnson 138-0449-001	N Type	0.15 dB	Nickel	4 GHz	Free Hanging (In-Line)	Brass	50 Ohms	LMR-400	1	-65 ░C	165 °C	Crimp	Silver	Brass	1400 V	500	Gold	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
