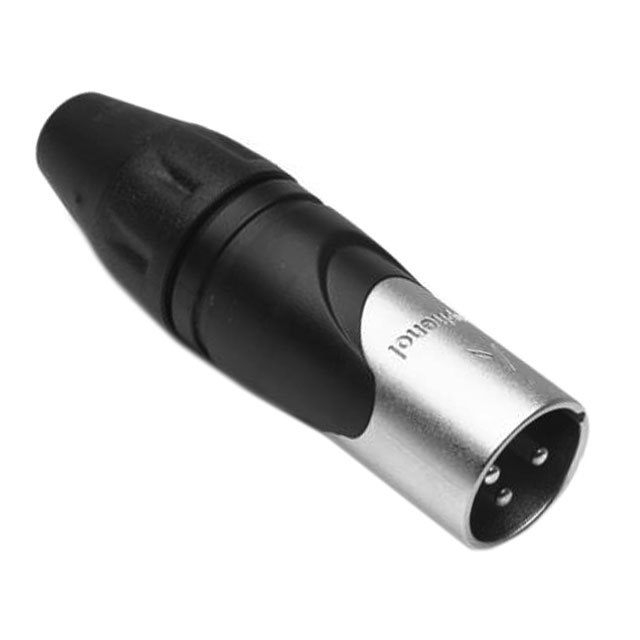

AX3M9M

Active

AMPHENOL AUDIO

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shell Material	Primary Material	Fastening Type	Shell Finish	Mounting Type	Ingress Protection	Orientation	Connector Type	Features	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)
AMPHENOL AUDIO AX3M	Silver	Zinc Die Cast	Metal	Latch Holder	Nickel	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Silver	-25 °C	75 ░C	XLR	15 A
AMPHENOL AUDIO AX3M9M	Silver	Zinc Die Cast	Metal	Latch Holder	Nickel	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Silver	-25 °C	75 ░C	XLR	15 A
AMPHENOL AUDIO AX3MB9M-AU	Black	Zinc Die Cast	Metal	Latch Holder	Black	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Gold	-25 °C	75 ░C	XLR	15 A
AMPHENOL AUDIO AX3M0M-AU	Silver	Zinc Die Cast	Metal	Latch Lock	Nickel	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Gold	-25 °C	75 ░C	XLR	15 A
AMPHENOL AUDIO AX3MB4M-AU	Black	Zinc Die Cast	Metal	Latch Holder	Black	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Gold	-25 °C	75 ░C	XLR	15 A
AMPHENOL AUDIO AX3M4M	Silver	Zinc Die Cast	Metal	Latch Holder	Nickel	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Silver	-25 °C	75 ░C	XLR	15 A
AMPHENOL AUDIO AX3MB5M-AU	Black	Zinc Die Cast	Metal	Latch Holder	Black	Free Hanging (In-Line)	IP40	Keyed	Male Pins Receptacle	Backshell Cable Clamp	Gold	-25 °C	75 ░C	XLR	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources
