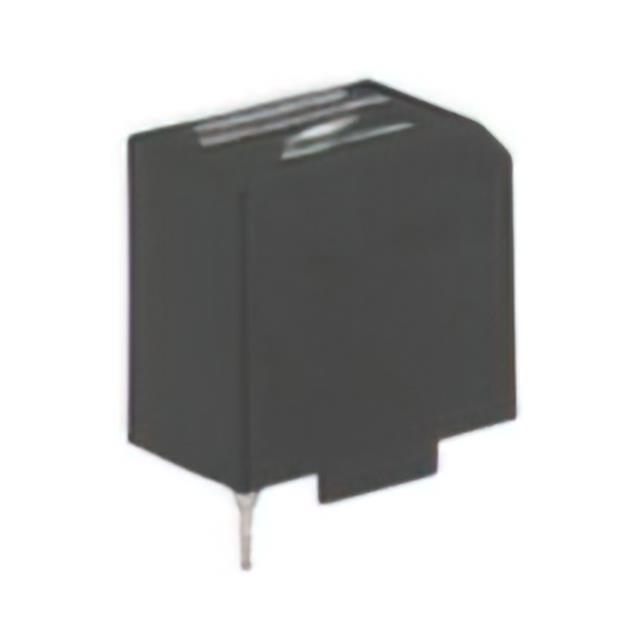

DSH-31-0004

Active

SCHURTER Inc.

FIXED IND 4A 40 MOHM TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

FIXED IND 4A 40 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	DC Resistance (DCR)
SCHURTER Inc. DSH-31-0004	125 °C	-40 °C	0.728 in	18.5 mm	1.24 in	31.5 mm	Through Hole	4 A	1.299 in	33 mm	4 Leads Horizontal Radial
SCHURTER Inc. DSH-31-0001	125 °C	-40 °C	0.728 in	18.5 mm	1.24 in	31.5 mm	Through Hole	1.6 A	1.299 in	33 mm	4 Leads Horizontal Radial	240 mOhm
SCHURTER Inc. DSH-31-0002	125 °C	-40 °C	0.728 in	18.5 mm	1.24 in	31.5 mm	Through Hole	2 A	1.299 in	33 mm	4 Leads Horizontal Radial	140 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	140	$ 6.99

General part information

Inductor 4 A 40mOhm Radial, Horizontal, 4 Leads

Technical documentation and resources
