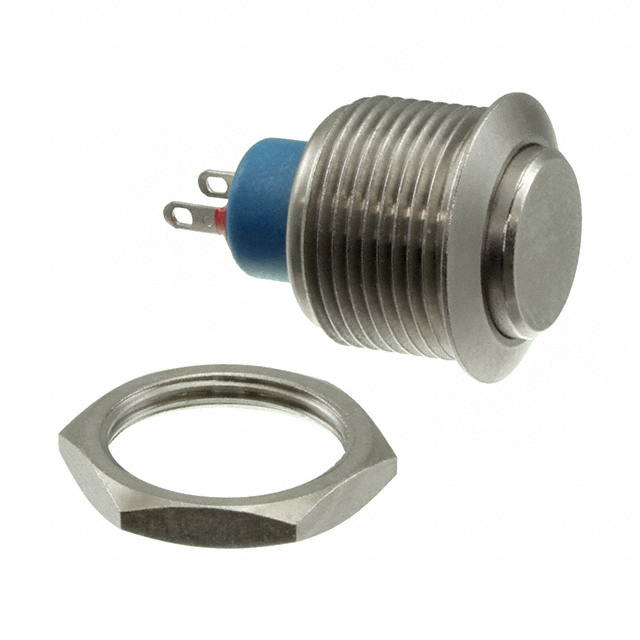

9633AX1146

Active

APEM

SWITCH PUSH SPST-NO 1A 30V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST-NO 1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	9633AX1146

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	250000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	30 V

Part	Color - Actuator/Cap	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Type	Switch Function	Termination Style	Current Rating (Amps)	Circuit	Actuator Marking	Voltage Rating - DC	Electrical Life	Panel Cutout Dimensions [diameter]
APEM 9633AX1146	Silver	Panel Mount Rear	Epoxy Sealed Terminals	65 °C	-30 ░C	Button Round	Standard	Off-Mom	Solder Lug	1 A	SPST-NO	No Marking	30 V	250000 Cycles	16.2 mm
APEM 9633NAKB	Black	Panel Mount Rear	Voltage Reduction Lighting	65 °C	-30 ░C	Round Plunger	Standard	Off-Mom	Solder Lug	1 A	SPST-NO	No Marking	30 V	250000 Cycles	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
