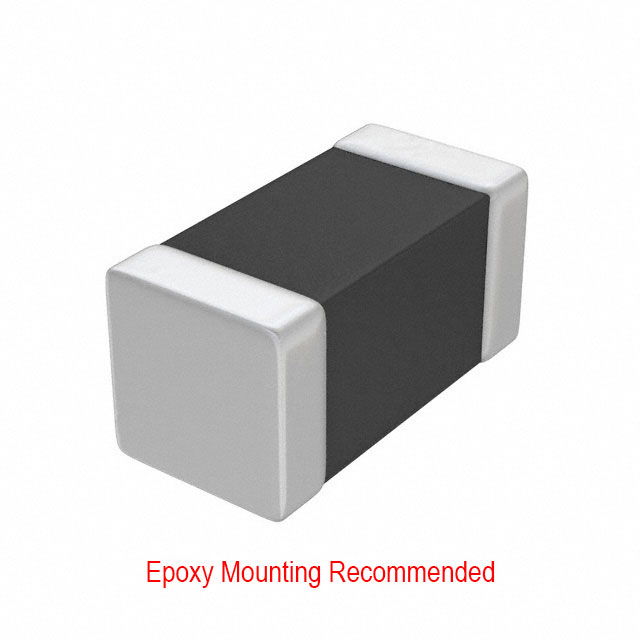

BLM18AG102WH1D

Active

Murata Power Solutions Inc.

FERRITE CHIP, 1 FUNCTION(S), 0.2A, EIA STD PACKAGE SIZE 0603

Deep-Dive with AI

Search across all available documentation for this part.

BLM18AG102WH1D

Active

Murata Power Solutions Inc.

FERRITE CHIP, 1 FUNCTION(S), 0.2A, EIA STD PACKAGE SIZE 0603

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BLM18AG102WH1D

Current Rating (Max) [Max]	200 mA
DC Resistance (DCR) (Max) [Max]	700 mOhm
Height (Max)	0.95 mm
Height (Max) [Max]	0.037 in
Impedance @ Frequency	1 kOhms
Mounting Type	Surface Mount, Epoxy
Number of Lines	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Ratings	AEC-Q200
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.032 in
Size / Dimension [y]	0.8 mm

BLM18AG Series

Part	Number of Lines	DC Resistance (DCR) (Max) [Max]	Filter Type	Impedance @ Frequency	Package / Case	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max)	Height (Max) [Max]	Current Rating (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type
Murata Power Solutions Inc. BLM18AG471BH1D	1	350 mOhm	Power Line	470 Ohms	0603 (1608 Metric)	AEC-Q200	-55 °C	150 °C	0.95 mm	0.037 in	550 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG102WH1D	1	700 mOhm		1 kOhms	0603 (1608 Metric)	AEC-Q200	-55 °C	150 °C	0.95 mm	0.037 in	200 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount Epoxy
Murata Power Solutions Inc. BLM18AG102SN1D	1	500 mOhm		1 kOhms	0603 (1608 Metric)		-55 °C	125 °C	0.95 mm	0.037 in	450 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG331SN1D	1	300 mOhm		330 Ohms	0603 (1608 Metric)		-55 °C	125 °C	0.95 mm	0.037 in	500 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG151SH1D	1		Differential Mode - Single	150 Ohms	0603 (1608 Metric)				0.95 mm	0.037 in		1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG151SN1D	1	250 mOhm		150 Ohms	0603 (1608 Metric)		-55 °C	125 °C	0.95 mm	0.037 in	700 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG601BH1D	1	380 mOhm	Power Line	600 Ohms	0603 (1608 Metric)	AEC-Q200	-55 °C	150 °C	0.95 mm	0.037 in	500 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG102BH1D	1	500 mOhm	Power Line	1 kOhms	0603 (1608 Metric)	AEC-Q200	-55 °C	150 °C	0.95 mm	0.037 in	450 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG601SN1D	1	380 mOhm		600 Ohms	0603 (1608 Metric)		-55 °C	125 °C	0.95 mm	0.037 in	500 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount
Murata Power Solutions Inc. BLM18AG221SH1D	1	250 mOhm		220 Ohms	0603 (1608 Metric)	AEC-Q200	-55 °C	125 °C	0.95 mm	0.037 in	700 mA	1.6 mm	0.032 in	0.063 in	0.8 mm	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.28
		10	$ 0.22
		25	$ 0.18
		50	$ 0.15
		100	$ 0.14
		250	$ 0.12
		500	$ 0.10
		1000	$ 0.09
	Digi-Reel®	1	$ 0.28
		10	$ 0.22
		25	$ 0.18
		50	$ 0.15
		100	$ 0.14
		250	$ 0.12
		500	$ 0.10
		1000	$ 0.09
	Tape & Reel (TR)	4000	$ 0.07

Description

General part information

BLM18AG Series

1 kOhms @ 100 MHz 1 Ferrite Bead 0603 (1608 Metric) 200mA 700mOhm
