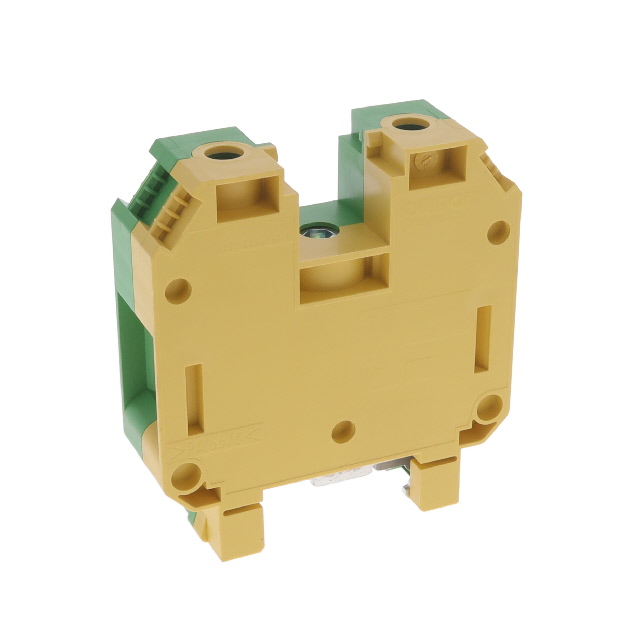

XW5G-S70-1.1-1

Active

Omron Electronics Inc-EMC Div

GROUNDTB SCREW 70MM 1:1 1TIER

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

GROUNDTB SCREW 70MM 1:1 1TIER

Technical Specifications

Parameters and characteristics for this part

Specification	XW5G-S70-1.1-1

Color	Green, Yellow
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	24 mm
Terminal - Width [y]	24 mm
Termination Style	Screw
Type	Ground, Earth
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	6 AWG
Wire Gauge or Range - AWG [Min]	2/0
Wire Gauge or Range - mm² [Max]	70 mm²
Wire Gauge or Range - mm² [Min]	10 mm²

Part	Type	Number of Positions	Voltage - UL	Voltage - IEC	Material - Insulation	Number of Levels	Terminal - Width [y]	Material Flammability Rating	Color	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Stripping Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Omron Electronics Inc-EMC Div XW5G-S70-1.1-1	Ground Earth	2	600 V	800 V	Nylon Polyamide (PA)	1	24 mm	UL94 V-0	Green Yellow	Screw	70 mm²	10 mm²	24 mm	2/0	6 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.90

General part information

Terminal Block Connector 2 Position Ground, Earth Green, Yellow 2/0-6 AWG

Technical documentation and resources

No documents available
