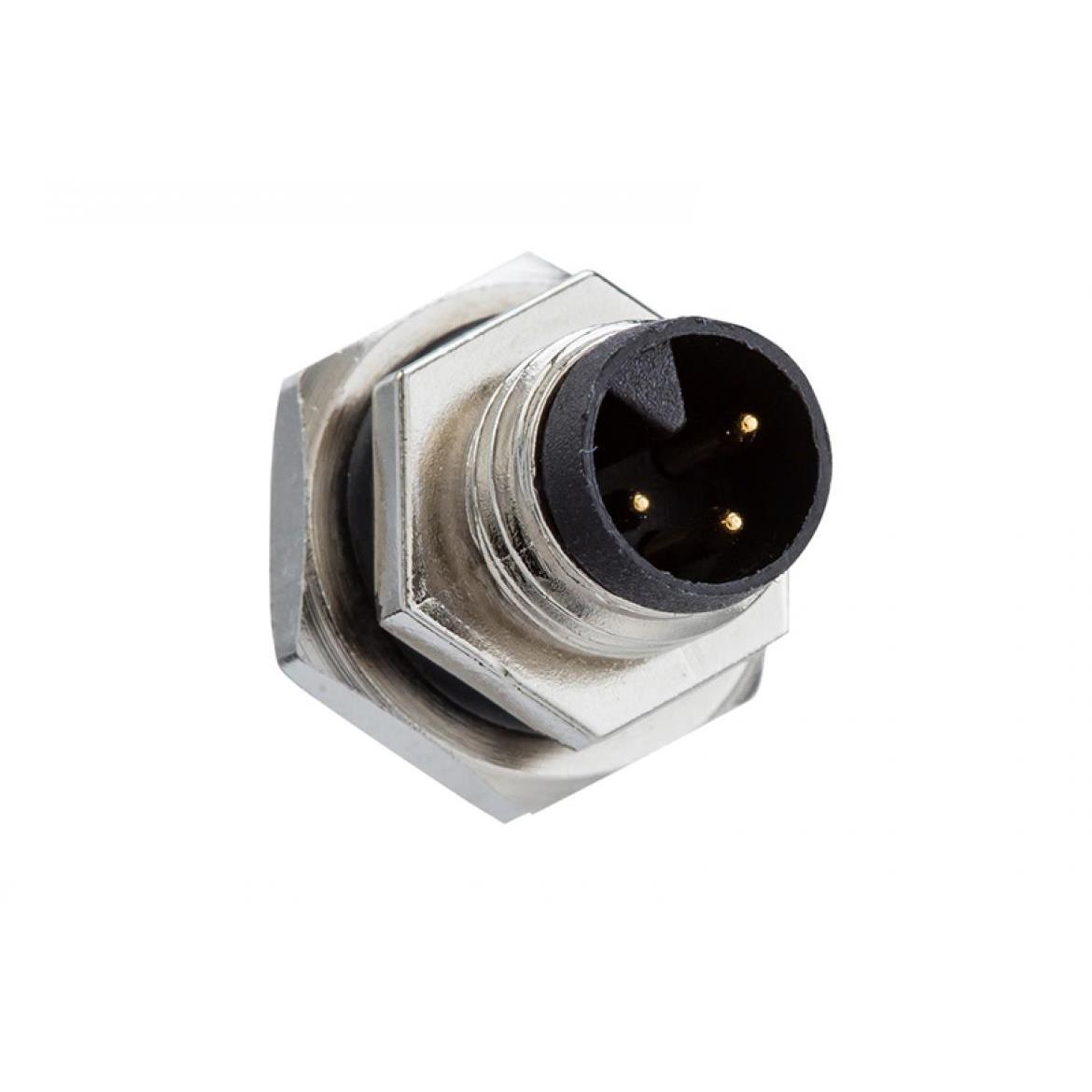

8A-04PMMS-SH7001
ActiveAmphenol LTW
M8 CONN WITH KEY
Deep-Dive with AI
Search across all available documentation for this part.
8A-04PMMS-SH7001
ActiveAmphenol LTW
M8 CONN WITH KEY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8A-04PMMS-SH7001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M8-4 |
| Shielding | Shielded |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.87 | |
| 10 | $ 5.26 | |||
| 25 | $ 4.75 | |||
| 50 | $ 4.40 | |||
| 100 | $ 4.08 | |||
| 250 | $ 3.71 | |||
| 500 | $ 3.46 | |||
| 1000 | $ 3.23 | |||
| 2500 | $ 2.96 | |||
Description
General part information
8A-04PMMS Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
