THS5075RJ

Active

TE Connectivity Passive Product

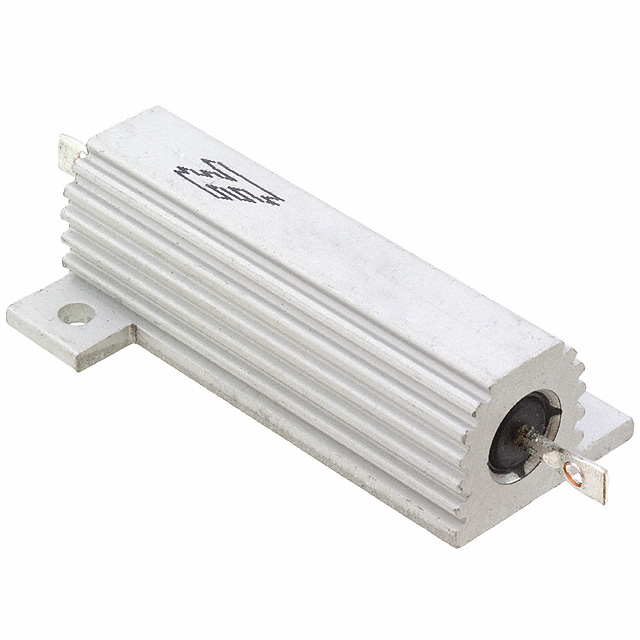

RES CHAS MNT 75 OHM 5% 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THS5075RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 75 OHM 5% 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THS5075RJ

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Lead Style	Solder Lugs
Mounting Feature	Flanges
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Power (Watts)	50 W
Resistance	75 Ohms
Size / Dimension [x]	51 mm
Size / Dimension [x]	2.008 in
Size / Dimension [y]	30 mm
Size / Dimension [y]	1.181 in
Temperature Coefficient	50 ppm/°C
Tolerance	5 %

THS50 Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Style	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Power (Watts)	Coating, Housing Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Mounting Feature	Composition
TE Connectivity Passive Product THS501R2J	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	1.2 Ohms	-55 °C	200 °C	50 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS50330RJ	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	330 Ohms	-55 °C	200 °C	30 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS501K5J	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	1500 Ohms	-55 °C	200 °C	30 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS5075RJ	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	75 Ohms	-55 °C	200 °C	50 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS505K6J	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	5.6 kOhms	-55 °C	200 °C	30 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS50500RJ	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	500 Ohms	-55 °C	200 °C	30 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS5039RJ	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	39 Ohms	-55 °C	200 °C	50 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS5082RJ	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	82 Ohms	-55 °C	200 °C	50 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS50R02J	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	0.02 Ohms	-55 °C	200 °C	50 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound
TE Connectivity Passive Product THS502K7J	30 mm	1.181 in	51 mm	2.008 in	Solder Lugs	2.7 kOhms	-55 °C	200 °C	30 ppm/°C	50 W	Aluminum	17 mm	0.669 in	5 %	Flanges	Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.64
		10	$ 4.02
		25	$ 3.34
		40	$ 3.06
		80	$ 2.69
		230	$ 2.24
		440	$ 2.13

Description

General part information

THS50 Series

75 Ohms ±5% 50W Wirewound Chassis Mount Resistor
