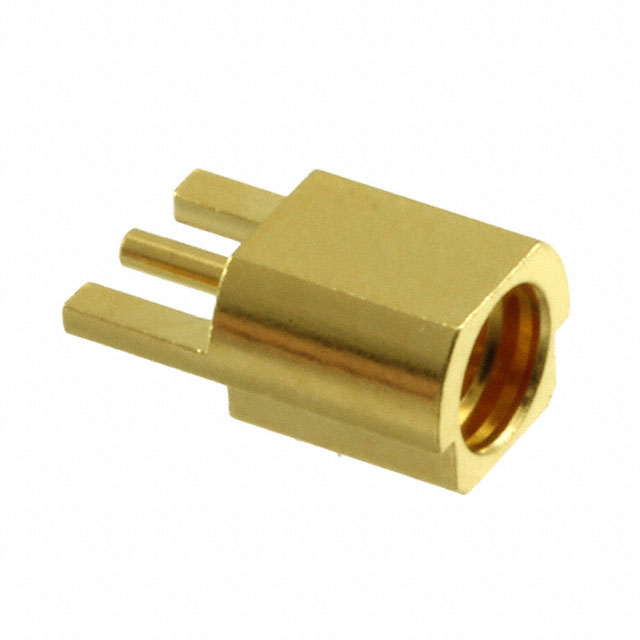

MMCX-LR-SMT(40)

Active

Hirose Electric USA, Inc.

CONN MMCX RCPT STR 50OHM EDGEMNT

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MMCX RCPT STR 50OHM EDGEMNT

Technical Specifications

Parameters and characteristics for this part

Specification	MMCX-LR-SMT(40)

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Housing Color	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Shield Termination	Body Material	Mounting Type	Center Contact Material	Body Finish	Fastening Type	Impedance	Connector Type	Center Contact Plating	Frequency - Max [Max]	Dielectric Material	Mating Cycles	Connector Style
Hirose Electric USA, Inc. MMCX-LR-SMT(40)	Gold	Solder	85 °C	-55 °C	1	Solder	Brass	Board Edge Cutout Surface Mount	Beryllium Copper	Gold	Snap-On	50 Ohms	Female Socket Receptacle	Gold	6000 MHz	Polytetrafluoroethylene (PTFE)	500	MMCX
Hirose Electric USA, Inc. MMCX-LR-SMT	Gold	Solder	85 °C	-55 °C	1	Solder	Brass	Board Edge Cutout Surface Mount	Beryllium Copper	Gold	Snap-On	50 Ohms	Female Socket Receptacle	Gold	6000 MHz	Polytetrafluoroethylene (PTFE)	500	MMCX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Receptacle, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
