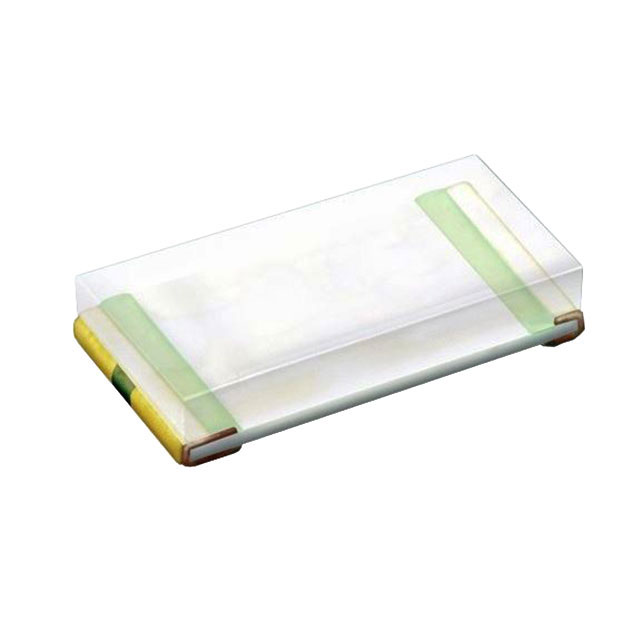

EAST16083BA0

Obsolete

Everlight Electronics Co Ltd

LED BLUE CLEAR 2SMD

Search across all available documentation for this part.

Obsolete

Everlight Electronics Co Ltd

LED BLUE CLEAR 2SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	Lens Style	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Height (Max) [Max] [z]	Supplier Device Package	Mounting Type	Lens Color	Package / Case	Lens Size [y]	Lens Size [x]	Configuration	Viewing Angle	Wavelength - Peak	Color	Millicandela Rating	Wavelength - Dominant
Everlight Electronics Co Ltd EAST16083BA0	5 mA	Rectangle with Flat Top	2.95 V	1.6 mm	0.8 mm	Clear	0.4 mm	2-SMD	Surface Mount	Colorless	0603 (1608 Metric)	0.8 mm	1.6 mm	Standard	120 °	468 nm	Blue
Everlight Electronics Co Ltd EAST16083BA1	5 mA	Rectangle with Flat Top	3 V	1.6 mm	0.8 mm	Clear	0.4 mm	2-SMD	Surface Mount	Colorless	0603 (1608 Metric)	0.8 mm	1.6 mm	Standard	120 °	468 nm	Blue	20 mcd	470 nm
Everlight Electronics Co Ltd EAST16083RA1	5 mA	Rectangle with Flat Top	1.85 V	1.6 mm	0.8 mm	Clear	0.4 mm	2-SMD	Surface Mount	Colorless	0603 (1608 Metric)	0.8 mm	1.6 mm	Standard	120 °	632 nm	Red	40 mcd	626 nm
Everlight Electronics Co Ltd EAST16083GA0	20 mA	Rectangle with Flat Top	3.4 V	1.6 mm	0.8 mm	Clear	0.4 mm	2-SMD	Surface Mount	Colorless	0603 (1608 Metric)	0.8 mm	1.6 mm	Standard	120 °	518 nm	Green	199 mcd	528 nm
Everlight Electronics Co Ltd EAST16083RA0	5 mA	Rectangle with Flat Top	2 V	1.6 mm	0.8 mm	Clear	0.4 mm	2-SMD	Surface Mount	Colorless	0603 (1608 Metric)	0.8 mm	1.6 mm	Standard	120 °	632 nm	Red	20 mcd	626 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Blue LED Indication - Discrete 2.95V 0603 (1608 Metric)

Technical documentation and resources
