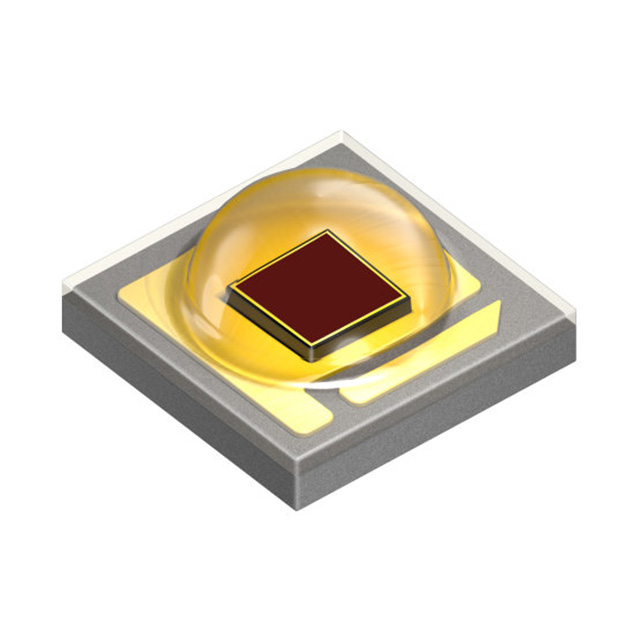

LJ CKBP-JZKZ-25-1-350-R18-Z
Obsoleteams-OSRAM USA INC.
LED OSLON SIGNAL RED 620NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LJ CKBP-JZKZ-25-1-350-R18-Z
Obsoleteams-OSRAM USA INC.
LED OSLON SIGNAL RED 620NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LJ CKBP-JZKZ-25-1-350-R18-Z |
|---|---|
| Color | Red |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 1.82 mm |
| Height - Seated (Max) [Max] [z] | 0.072 in |
| Lumens/Watt @ Current - Test | 116 lm/W |
| Luminous Flux @ Current/Temperature | 87 lm |
| Luminous Flux @ Current/Temperature [Max] | 112 lm |
| Luminous Flux @ Current/Temperature [Min] | 61 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 9.6 °C/W |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength | 620 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LJCKBP Series
LED Lighting Color OSLON® Signal Red 620nm (612nm ~ 628nm) 1212 (3030 Metric)
