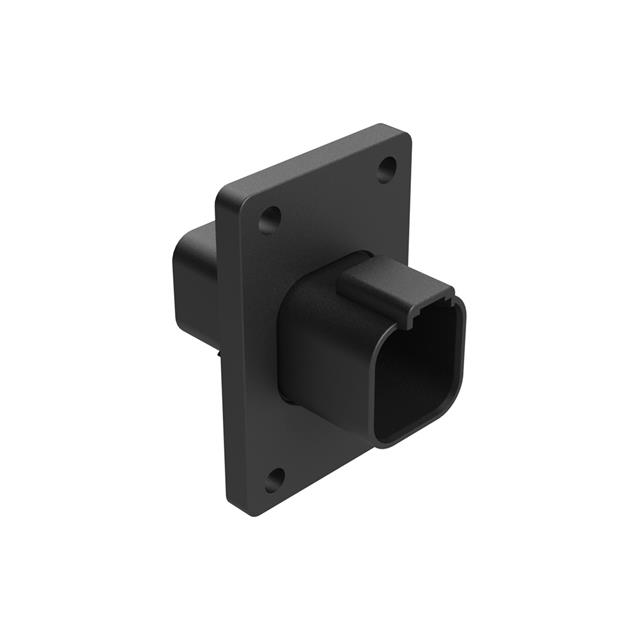

AT04-6P-CL06

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 6POS FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet

AT04-6P-CL06

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 6POS FLANGE MNT

Deep-Dive with AI

DocumentsA Series Family Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-6P-CL06

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-6P Series

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Contact Termination	Number of Rows	Insulation Material	Number of Positions	Fastening Type	Contact Type	Note	Color	Contact Finish	Wire Type	Cable Termination	Ingress Protection	Number of Positions Loaded	Contact Shape	Shrouding	Insulation Color	Insulation Height	Insulation Height	Termination	Contact Material	Applications	Style	Current Rating (Amps)	Contact Finish - Mating
Amphenol Sine Systems Corp AT04-6P-ORG	Receptacle	-55 °C	125 °C	Sealed	Free Hanging (In-Line)	Crimp	2	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included
Amphenol Sine Systems Corp AT04-6P-CL06	Receptacle	-55 °C	125 °C	Mounting Flange Sealed		Crimp	3	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included	Black
Amphenol Sine Systems Corp AT04-6P-RD01BLK	Receptacle	-55 °C	125 °C	Sealed	Free Hanging (In-Line)	Crimp	3	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included	Black
Amphenol Sine Systems Corp AT04-6P-EP13	Receptacle			Cap (Cover) IP67 Sealed	Free Hanging (In-Line)		3		6	Latch Holder	Male Pin		Black	Nickel	Discrete	Crimp
Amphenol Sine Systems Corp AT04-6P-BM04	Receptacle	-55 °C	125 °C		Through Hole		2	Thermoplastic	6	Latch Holder	Male Pin						IP67	All	Circular	Shrouded - 4 Wall	Black	0.835 "	21.21 mm	Solder	Copper Alloy	Automotive General Purpose Industrial	Board to Cable/Wire	13 A	Nickel
Amphenol Sine Systems Corp AT04-6P-L012	Receptacle	-55 °C	125 °C	Mounting Flange Sealed		Crimp	3	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included	Gray
Amphenol Sine Systems Corp AT04-6P-SR01WHT	Receptacle	-55 °C	125 °C	Cap (Cover) IP68 IP69K Sealed Strain Relief	Free Hanging (In-Line)	Crimp	3	Thermoplastic	6	Latch Holder	Male Pin		White
Amphenol Sine Systems Corp AT04-6P-RD01	Receptacle	-55 °C	125 °C	Sealed	Free Hanging (In-Line)	Crimp	3	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included	Gray
Amphenol Sine Systems Corp AT04-6P-YEL	Receptacle	-55 °C	125 °C	Sealed	Free Hanging (In-Line)	Crimp	2	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included	Yellow
Amphenol Sine Systems Corp AT04-6P-SS01	Receptacle	-55 °C	125 °C		Free Hanging (In-Line)	Crimp	3	Thermoplastic	6	Latch Holder	Male Pin	Contacts Not Included	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.59
		10	$ 5.96
		25	$ 5.63
		50	$ 5.49
		100	$ 5.22
		300	$ 4.67
		600	$ 4.40
		1200	$ 3.85
		2700	$ 3.65

Description

General part information

AT04-6P Series

6 Rectangular Connectors - Housings Receptacle Black

Documents

Technical documentation and resources

A Series Family

Datasheet
