0395443003

Active

Molex

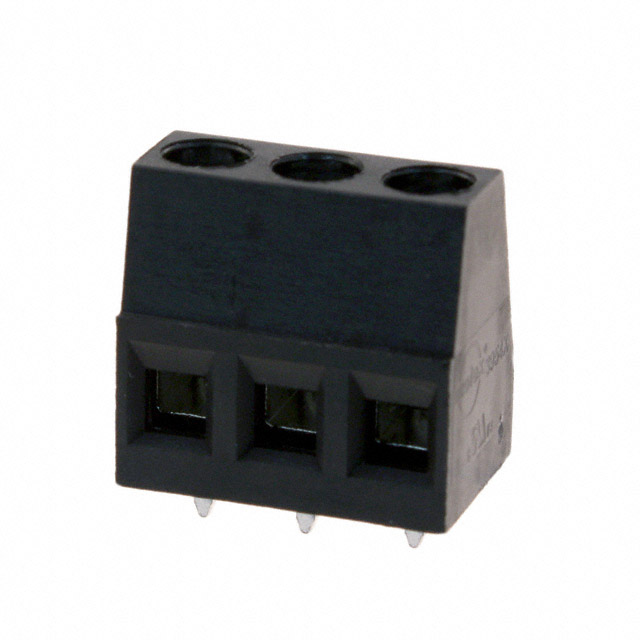

TERM BLK 3P SIDE ENT 5.08MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 39500-001 Prod Spec

0395443003

Active

Molex

TERM BLK 3P SIDE ENT 5.08MM PCB

Deep-Dive with AI

DocumentsDatasheet 39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395443003

Clamp Material - Plating	Brass - Nickel Plated
Color	Black
Contact Material - Plating [custom]	Brass - Tin Plated
Current	15 A
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	3
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	0.51 Nm
Torque - Screw	4.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

039544 Series

Part	Number of Levels	Mating Orientation	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Current	Contact Material - Plating [custom]	Clamp Material - Plating	Positions Per Level	Mounting Type	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Screw Material - Plating	Color	Voltage	Features	Screw Thread
Molex 0395443018	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	18	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V
Molex 0395445007	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	7	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped
Molex 0395445016	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	16	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped
Molex 0395443003	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass - Nickel Plated	3	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel Zinc Plated	Black	300 V		M3
Molex 0395447008	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	8	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped
Molex 0395447011	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	11	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped
Molex 0395443006	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass - Nickel Plated	6	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel Zinc Plated	Black	300 V		M3
Molex 0395447022	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	22	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped
Molex 0395445021	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	21	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped
Molex 0395447014	1	Horizontal with Board	Screw - Rising Cage Clamp	30 AWG	12 AWG	15 A	Brass - Tin Plated	Brass	14	Through Hole	0.51 Nm	4.5 Lb-In	-40 °C	105 ░C	0.2 in	5.08 mm	Steel	Black	300 V	Positions Stamped

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.90
		10	$ 1.33
		25	$ 1.24
		50	$ 1.13
		100	$ 1.12
		250	$ 0.95
		500	$ 0.90
		1200	$ 0.80
		6000	$ 0.65

Description

General part information

039544 Series

3 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole

Documents

Technical documentation and resources

Datasheet

39500-001 Prod Spec

Datasheet
