WP7A-S030VA1-R8000

Active

JAE Electronics

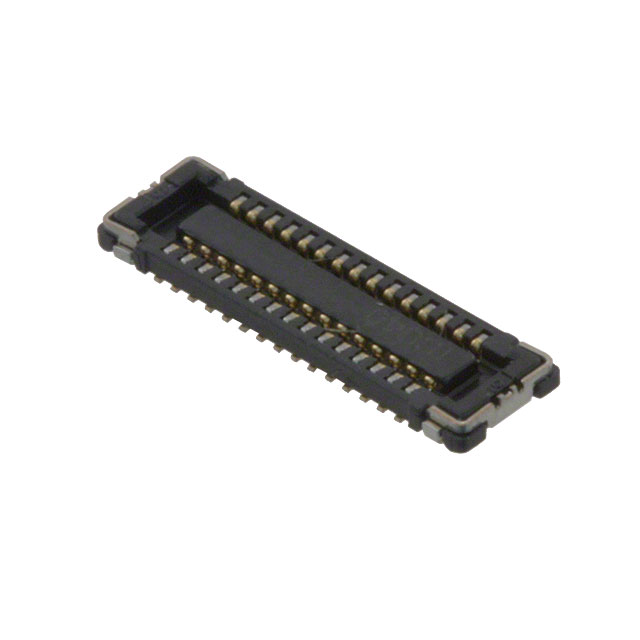

CONN RCPT 30POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WP7A-S030VA1-R8000

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.71 mm
Height Above Board [z]	0.028 in
Mated Stacking Heights	0.7 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Number of Positions	Connector Type	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board [z]	Height Above Board [z]
JAE Electronics WP7B-P034VA1-R6000	0.016 in	0.4 mm	2	Gold	34	Outer Shroud Contacts Plug	Solder Retention	0.02 in	0.5 mm	0.7 mm	4 Áin	0.1 Ám	Surface Mount
JAE Electronics WP7A-S030VA1-R8000	0.016 in	0.4 mm	2	Gold	30	Center Strip Contacts Receptacle	Solder Retention			0.7 mm	4 Áin	0.1 Ám	Surface Mount	0.71 mm	0.028 in
JAE Electronics WP7A-S030VA1-R500	0.016 in	0.4 mm	2	Gold	30	Center Strip Contacts Receptacle	Solder Retention			0.7 mm	4 Áin	0.1 Ám	Surface Mount	0.71 mm	0.028 in
JAE Electronics WP7A-S032VA1-R8000	0.016 in	0.4 mm	2	Gold		Center Strip Contacts Receptacle	Solder Retention			0.7 mm	4 Áin	0.1 Ám	Surface Mount	0.71 mm	0.028 in
JAE Electronics WP7A-S032VA1-R500	0.016 in	0.4 mm	2	Gold		Center Strip Contacts Receptacle	Solder Retention			0.7 mm	4 Áin	0.1 Ám	Surface Mount	0.71 mm	0.028 in
JAE Electronics WP7B-P034VA1-R500	0.016 in	0.4 mm	2	Gold	34	Outer Shroud Contacts Plug	Solder Retention	0.02 in	0.5 mm	0.7 mm	4 Áin	0.1 Ám	Surface Mount
JAE Electronics WP7A-S032VA1-R6000	0.016 in	0.4 mm	2	Gold		Center Strip Contacts Receptacle	Solder Retention			0.7 mm	4 Áin	0.1 Ám	Surface Mount	0.71 mm	0.028 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
