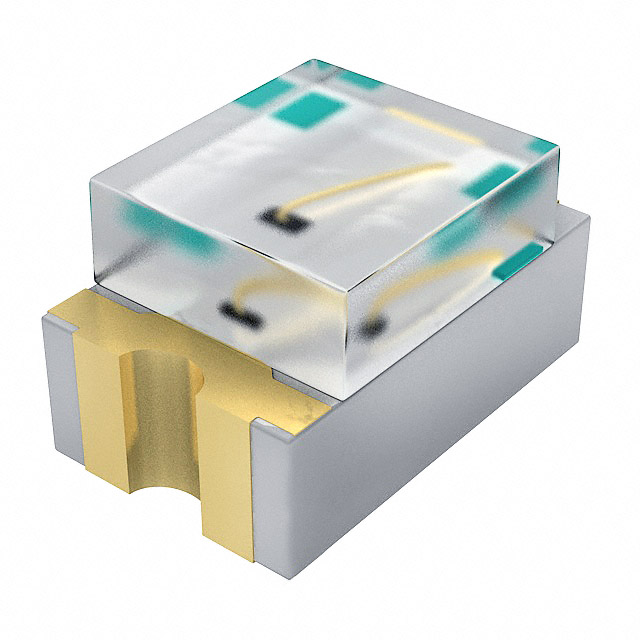

PT17-21C/L41/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTO 940NM TOP VIEW 0805
Deep-Dive with AI
Search across all available documentation for this part.
PT17-21C/L41/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTO 940NM TOP VIEW 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT17-21C/L41/TR8 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 0805 |
| Power - Max [Max] | 75 mW |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.06 | |||
| 150000 | $ 0.06 | |||
Description
General part information
PT17-21 Series
Phototransistors 940nm Top View 0805 (2012 Metric)
