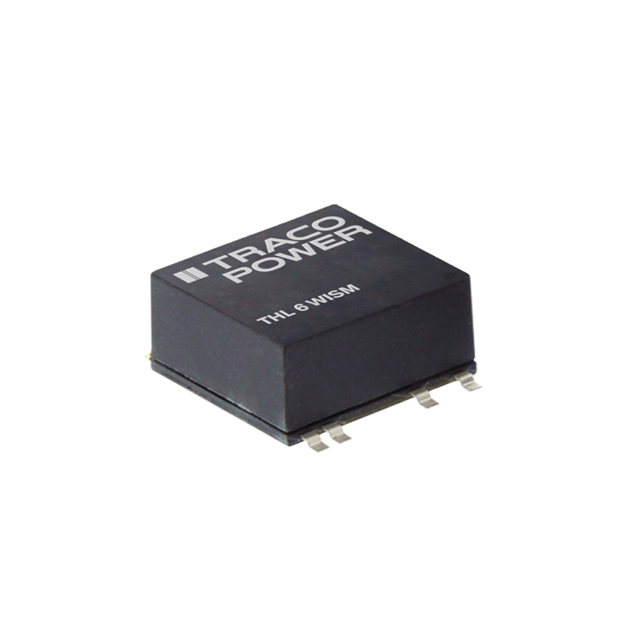

THL 6-4812WISM

Traco Power

DC DC CONVERTER 12V 6W

Deep-Dive with AI

DocumentsTHL 6WISM Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THL 6-4812WISM

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	83 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	7 Leads
Package / Case	16-SMD Module
Power (Watts)	6 W
Size / Dimension [x]	0.87 in
Size / Dimension [x]	22 mm
Size / Dimension [y]	20.3 mm
Size / Dimension [y]	0.8 in
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

THL 6 Series

Part	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Type	Current - Output (Max)	Current - Output (Max)	Mounting Type	Features	Voltage - Isolation	Applications	Voltage - Output 2	Package / Case	Package / Case	Power (Watts)	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]
Traco Power THL 6-2422WISM	36 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	2	9 V	Isolated Module	250 mA	250 mA	Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)	-12 V	7 Leads	16-SMD Module	6 W	12 V	83 %	-40 °C	75 ¯C
Traco Power THL 6-2411WISM	36 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	1	9 V	Isolated Module			Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)		7 Leads	16-SMD Module	6 W	5 V	79 %	-40 °C	75 ¯C	1.2 A
Traco Power THL 6-4812WISM	75 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	1	18 V	Isolated Module			Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)		7 Leads	16-SMD Module	6 W	12 V	83 %	-40 °C	75 ¯C	500 mA
Traco Power THL 6-4821WISM	75 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	2	18 V	Isolated Module			Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)	-5 V	7 Leads	16-SMD Module	6 W	5 V		-40 °C	75 ¯C	600 mA
Traco Power THL 6-4811WISM	75 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	1	18 V	Isolated Module			Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)		7 Leads	16-SMD Module	6 W	5 V	79 %	-40 °C	75 ¯C	1.2 A
Traco Power THL 6-2415WISM	36 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	1	9 V	Isolated Module			Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)		7 Leads	16-SMD Module	6 W	24 V	83 %	-40 °C	75 ¯C	250 mA
Traco Power THL 6-4810WISM	75 V	20.3 mm	0.8 in	0.87 in	0.4 "	22 mm	10.2 mm	1	18 V	Isolated Module			Surface Mount	Remote On/Off SCP	1.5 kV	ITE (Commercial)		7 Leads	16-SMD Module	4.8 W	3.3 V	76 %	-40 °C	75 ¯C	1.45 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 35.10
		10	$ 30.53
		25	$ 29.52
		50	$ 28.78
		100	$ 28.06
		250	$ 27.13
		500	$ 24.11
