2359393-1

Active

TE Connectivity Potter & Brumfield Relays

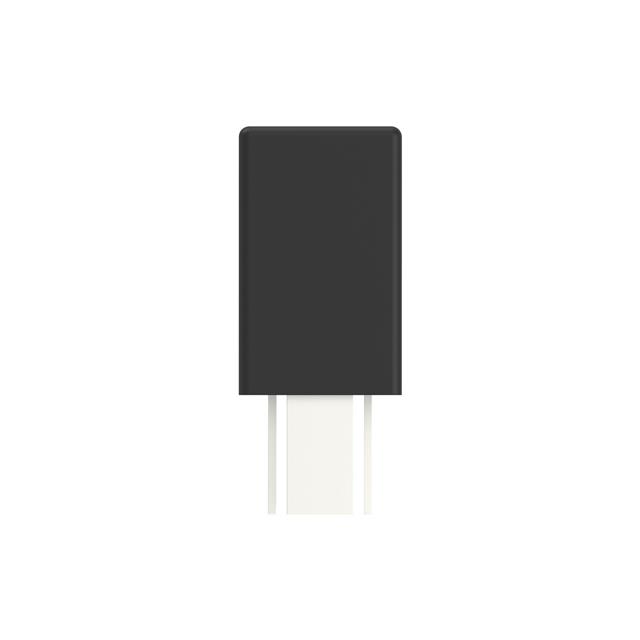

RELAY V23074A2002A402-EV-CBOX

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY V23074A2002A402-EV-CBOX

Technical Specifications

Parameters and characteristics for this part

Specification	2359393-1

Coil Power	1.34 W
Coil Resistance	430 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Alloy
Contact Rating (Current)	30 A
Features	Diode
Mounting Type	Socketable
Must Operate Voltage	14.4 VDC
Must Release Voltage	3.6 VDC
Operate Time	6 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Release Time	3 ms
Switching Voltage	32 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect

Part	Coil Resistance	Must Operate Voltage	Coil Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Termination Style	Mounting Type	Contact Form	Coil Type	Contact Material	Switching Voltage	Features	Contact Rating (Current)	Coil Power	Must Release Voltage
TE Connectivity Potter & Brumfield Relays 2359393-1	430 Ohms	14.4 VDC	24 VDC	6 ms	125 °C	-40 °C	3 ms	Multiple Sizes Plug In Quick Connect	Socketable	SPST-NO (1 Form A)	Non Latching	Silver Alloy	32 VDC	Diode	30 A	1.34 W	3.6 VDC
