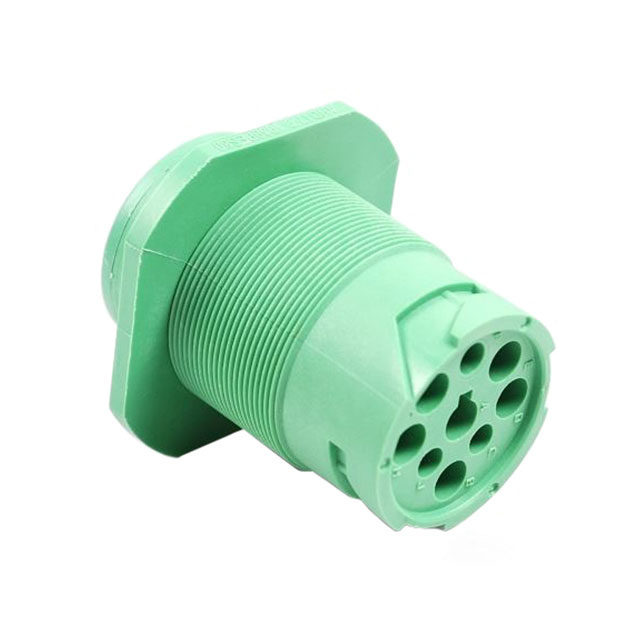

AHD17-9-1939PES80

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 9POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 9POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	AHD17-9-1939PES80

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Green
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Male Pins

Part	Ingress Protection	Contact Size	Mounting Feature	Shielding	Connector Type	Note	Number of Positions	Contact Type	Orientation	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Fastening Type	Housing Color
Amphenol Sine Systems Corp AHD17-9-1939PES80	IP67 - Dust Tight Waterproof	16	Bulkhead - Front Side Nut	Unshielded	Receptacle Housing	Contacts Not Included Jam Nut Not Included	9	Crimp	Keyed	For Male Pins	-55 °C	125 °C	Circular	Bayonet Lock	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle Housing Panel Mount
