BD11670GWL-E2
ActiveRohm Semiconductor
DPDT TYPE (DOUBLE POLE DOUBLE THROW)
Deep-Dive with AI
Search across all available documentation for this part.
BD11670GWL-E2
ActiveRohm Semiconductor
DPDT TYPE (DOUBLE POLE DOUBLE THROW)
Technical Specifications
Parameters and characteristics for this part
| Specification | BD11670GWL-E2 |
|---|---|
| Applications | USB |
| Features | USB 2.0 |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| On-State Resistance (Max) [Max] | 5 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | CSPBGA, 11-UFBGA |

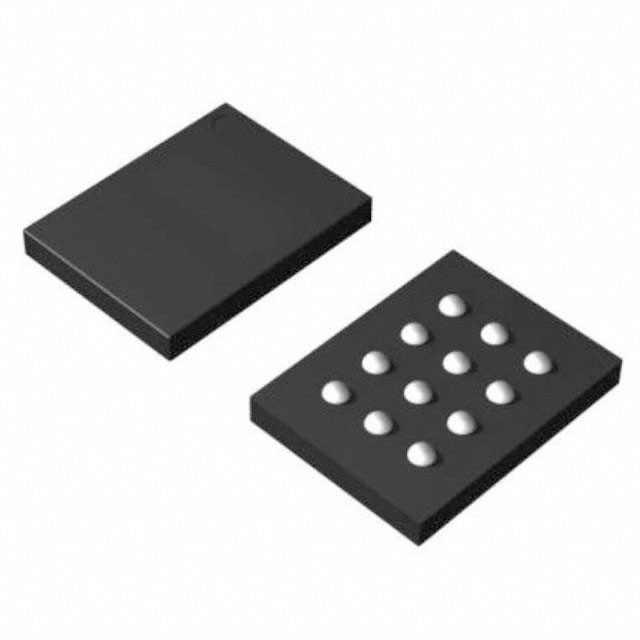

| Supplier Device Package | UCSP50L1C |
| Switch Circuit | DPDT |
| Voltage - Supply, Single (V+) [Max] | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.49 | |
| 10 | $ 1.60 | |||
| 25 | $ 1.37 | |||
| 100 | $ 1.11 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.84 | |||
| Digi-Reel® | 1 | $ 2.49 | ||
| 10 | $ 1.60 | |||
| 25 | $ 1.37 | |||
| 100 | $ 1.11 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.84 | |||
| Tape & Reel (TR) | 3000 | $ 0.76 | ||
| 6000 | $ 0.72 | |||
| 9000 | $ 0.70 | |||
Description
General part information
BD11670GWL Series
BD11670GWL is a DPDT analog switch that supports USB2.0 high-speed and has both a low resistance and a low capacitance. It supports input of dual power supplies from VBUS and VCC. VBUS of up to 28V is supported. All terminals have electrostatic discharge protection circuit built-in.
