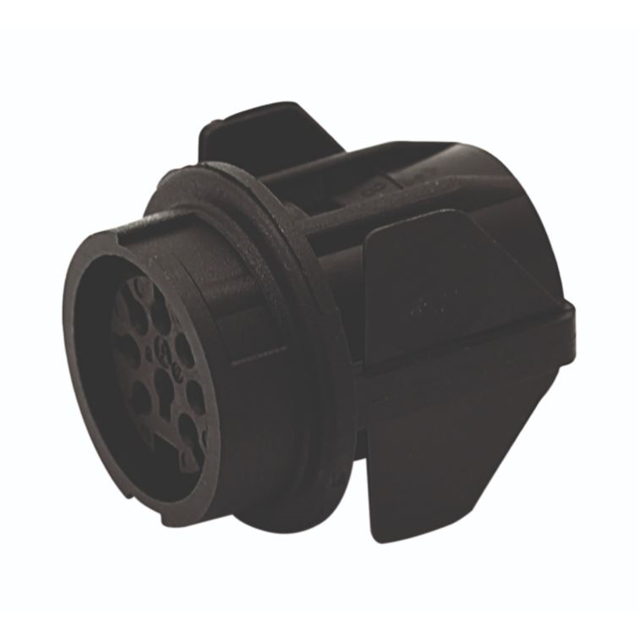

T 3647 500
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 14P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T 3647 500
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 14P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3647 500 |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 3 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 14 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shell Size - Insert | M16-14 |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 15.45 | |
Description
General part information
T 3647 Series
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
