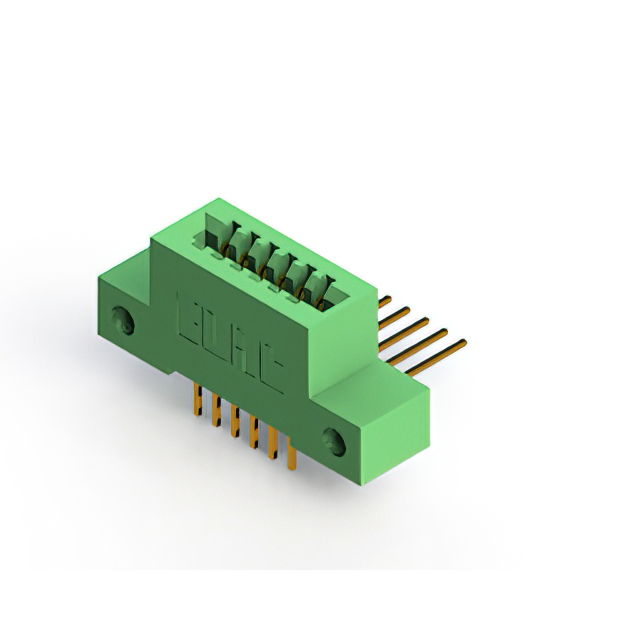

CARD EDGE CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-012-558-212
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-012-558-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
342-012 Series
...
| Part | Read Out | Number of Rows | Flange Feature | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Positions/Bay/Row [custom] | Material - Insulation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish | Pitch [x] | Pitch [x] | Contact Type | Mounting Type | Termination Rows | Number of Positions | Card Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 2 | Flush Mount M3 Threaded Insert Top Opening | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 6 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole | 2 | 12 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Dual | 2 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 6 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole | 2 | 12 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Dual | 2 | Floating Bobbin Flush Mount | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 6 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | 2 | 12 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
EDAC Inc. | Single | 1 | Flush Mount Side Opening Unthreaded | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 12 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | 1 | 12 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm |
EDAC Inc. | Dual | 2 | Floating Bobbin Flush Mount | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 6 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole | 2 | 12 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
EDAC Inc. | Single | 1 | Flush Mount Top Opening Unthreaded | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 12 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | 1 | 12 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm |
EDAC Inc. | Dual | 2 | Flush Mount Side Opening Unthreaded | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 6 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole Right Angle | 2 | 12 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 0.128 " | 3.25 mm |
EDAC Inc. | Single | 1 | Floating Bobbin Flush Mount | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 12 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole | 1 | 12 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 0.116 in | 2.95 mm |
EDAC Inc. | Single | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 12 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole | 1 | 12 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Dual | 2 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 6 | Polyester Thermoplastic | Green | -40 °C | 105 ░C | Female | Gold | 2.54 mm | 0.1 in | Cantilever | Through Hole | 2 | 12 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.40 | |
Description
General part information
342-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
