103330-5

Active

TE Connectivity Raychem Cable Protection

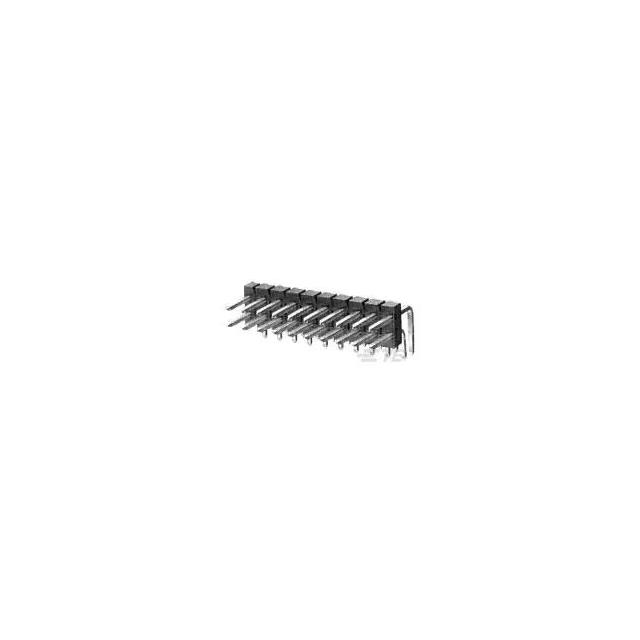

10 MODII HDR DRRA B/A .100CL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

103330-5

Active

TE Connectivity Raychem Cable Protection

10 MODII HDR DRRA B/A .100CL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	103330-5

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.05 mm
Insulation Height	0.238 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

103330 Series

Part	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Post	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Mounting Type	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Style	Number of Rows	Number of Positions	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 9-103330-0-04	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	8	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded
TE Connectivity Raychem Cable Protection 4-103330-0-03	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin-Lead	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	6	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded	Tin-Lead
TE Connectivity Raychem Cable Protection 9-103330-0-35	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	70	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded
TE Connectivity Raychem Cable Protection 103330-5	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin-Lead	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	10	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded	Tin-Lead
TE Connectivity Raychem Cable Protection 4-103330-0-04	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin-Lead	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	8	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded	Tin-Lead
TE Connectivity Raychem Cable Protection 4-103330-0-15	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin-Lead	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	30	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded	Tin-Lead
TE Connectivity Raychem Cable Protection 9-103330-0-19	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	38	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded
TE Connectivity Raychem Cable Protection 4-103330-0-10	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin-Lead	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	20	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded	Tin-Lead
TE Connectivity Raychem Cable Protection 9-103330-0-02	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	4	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded
TE Connectivity Raychem Cable Protection 9-103330-0-03	Solder	2.54 mm	0.1 in	Push-Pull	3 A	0.1 in	2.54 mm	Breakaway Header	6.05 mm	0.238 in	Black	Tin	UL94 V-0	0.12 in	3.05 mm	All	Through Hole Right Angle	Thermoplastic	0.23 in	5.84 mm	-65 ░C	105 ░C	Male Pin	Board to Board Cable	2	6	Copper Alloy	2.54 µm	100 µin	2.54 çm	100 çin	Square	Unshrouded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	150	$ 0.61

Description

General part information

103330 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
