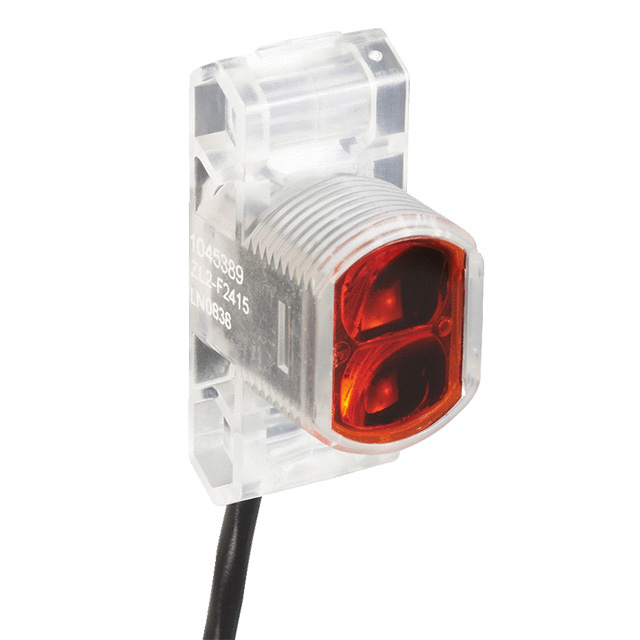

1045385

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 3M PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR RETROREFLECTIVE 3M PNP

Technical Specifications

Parameters and characteristics for this part

Specification	1045385

Connection Method	4POS, Connector, M8
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Sensing Distance [Max]	118.11 in
Sensing Distance [Max]	3 m
Sensing Distance [Min]	100 mm
Sensing Distance [Min]	3.937 "
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Output Configuration	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Light Source	Ingress Protection	Connection Method	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]
SICK, Inc. 1045385	PNP - Dark-ON/Light-ON - Selectable	100 mm	3.937 "	118.11 in	3 m	Red LED	IP67	4POS Connector M8	Retroreflective	50 °C	-25 °C	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 3.937" ~ 118.110" (100mm ~ 3m) PNP - Dark-ON/Light-ON - Selectable
