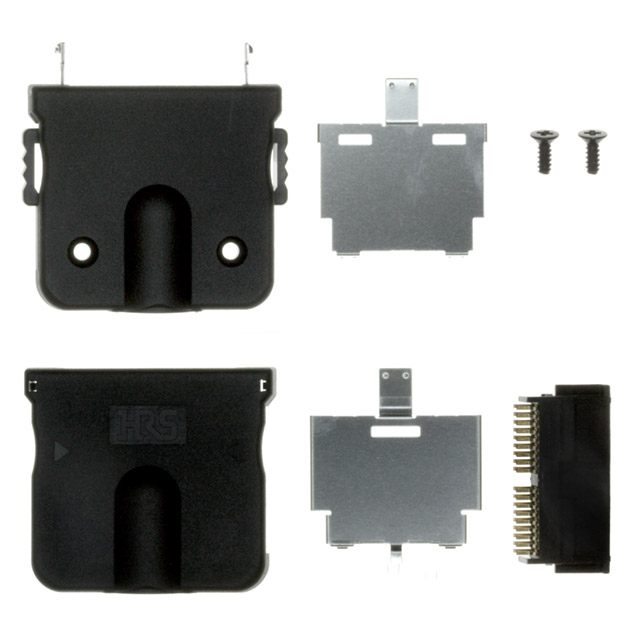

ST40X-36S-CV(30)

Active

Hirose Electric USA, Inc.

CONN INTERFACE PL 36 POS 0.5MM SOLDER ST CABLE MOUNT 36 TERMINAL 1 PORT TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ST40X-36S-CV(30)

Active

Hirose Electric USA, Inc.

CONN INTERFACE PL 36 POS 0.5MM SOLDER ST CABLE MOUNT 36 TERMINAL 1 PORT TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST40X-36S-CV(30)

Cable Termination	Solder
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Non-Gender Specific
Features	Shielded
Mounting Type	Free Hanging (In-Line)
Number of Positions	36
Number of Rows	1
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Wire Type	Discrete

ST40X Series

Part	For Use With/Related Products	Accessory Type	Number of Rows	Mounting Type	Contact Type	Connector Type	Pitch [x]	Pitch [x]	Color	Wire Type	Features	Number of Positions	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Fastening Type
Hirose Electric USA, Inc. ST40X-BS(5.8)	ST Series	Bushing
Hirose Electric USA, Inc. ST40X-24S-CV			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	24	Solder	Gold
Hirose Electric USA, Inc. ST40X-24S-CV(81)			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	24	Solder	Gold	0.76 Ám	30 Áin	Lever Lock
Hirose Electric USA, Inc. ST40X-18S-CV1			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	18	Solder	Gold
Hirose Electric USA, Inc. ST40X-24S-CV(80)			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	24	Solder	Gold	0.203 çm	8 çin	Lever Lock
Hirose Electric USA, Inc. ST40X-24S-CV1(80)			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	24	Solder	Gold	0.203 çm	8 çin
Hirose Electric USA, Inc. ST40X-36S-CV(30)			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	36	Solder	Gold	0.203 çm	8 çin
Hirose Electric USA, Inc. ST40X-CM1(6.8)	ST Series	Cable Clamp
Hirose Electric USA, Inc. ST40X-24S-CV1(02)			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	24	Solder
Hirose Electric USA, Inc. ST40X-24S-CV(31)			1	Free Hanging (In-Line)	Non-Gender Specific	Plug	0.5 mm	0.02 in	Black	Discrete	Shielded	24	Solder	Gold	0.203 çm	8 çin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.25
		10	$ 5.66
		25	$ 5.34
		50	$ 5.21
		100	$ 4.95
		250	$ 4.43
		450	$ 4.17
		950	$ 3.65
		2400	$ 3.47

Description

General part information

ST40X Series

36 Position Rectangular Plug Connector Solder Gold
