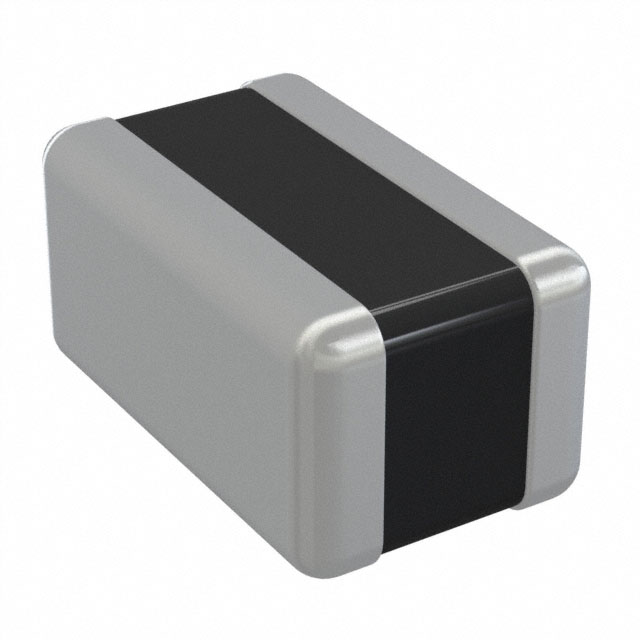

AWK212BJ226MDHT

TAIYO YUDEN

CAP ,MLCC ,0805,4V ,X5R,22UF20% ROHS COMPLIANT: YES

Search across all available documentation for this part.

TAIYO YUDEN

CAP ,MLCC ,0805,4V ,X5R,22UF20% ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AWK212BJ226MDHT

Applications	Automotive, Bypass, Decoupling
Capacitance	22 µF
Features	Low ESL
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	0508
Package / Case	1220 Metric
Ratings	AEC-Q200
Size / Dimension [x]	1.25 mm
Size / Dimension [x]	0.049 in
Size / Dimension [y]	0.079 in
Size / Dimension [y]	2 mm
Temperature Coefficient	X5R
Thickness (Max) [Max]	0.95 mm
Thickness (Max) [Max]	0.037 in
Tolerance	20 %
Voltage - Rated	4 V

Part	Voltage - Rated	Mounting Type	Capacitance	Tolerance	Features	Temperature Coefficient	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings
TAIYO YUDEN AWK212BJ226MDHT	4 V	MLCC Surface Mount	22 µF	20 %	Low ESL	X5R	Automotive Bypass Decoupling	1.25 mm	0.079 in	2 mm	0.049 in	0508	1220 Metric	0.95 mm	0.037 in	85 °C	-55 °C	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF ±20% 4V Ceramic Capacitor X5R 0508 (1220 Metric)
