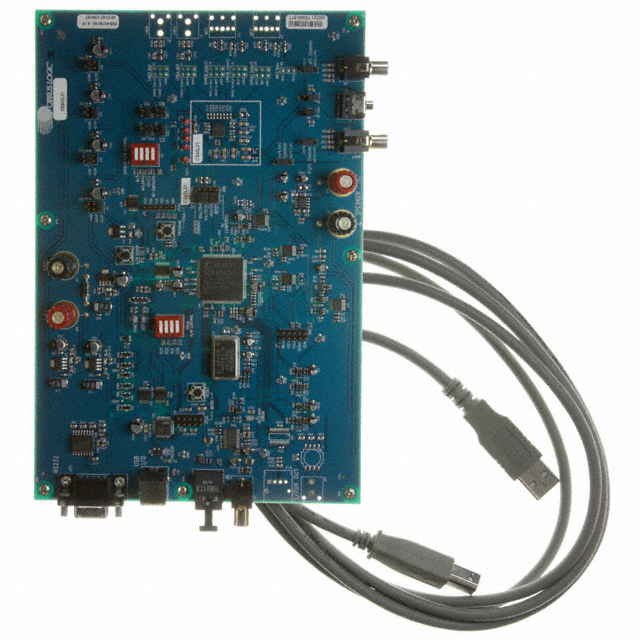

CDB43L21

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS43L21

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS43L21

Technical Specifications

Parameters and characteristics for this part

Part	Resolution (Bits)	Data Interface	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Mounting Type	Voltage Supply Source	Supplier Device Package	Package / Case	Sampling Rate (Per Second)	Number of Bits	Supplied Contents	DAC Type	Number of DAC's	Utilized IC / Part
Cirrus Logic Inc. CS43L21-CNZ	24 b	Serial	Audio DAC	2.63 V	1.65 V	85 °C	-40 °C	2	Surface Mount	Analog and Digital	32-QFN (5x5)	32-VFQFN Exposed Pad	96 kHz
Cirrus Logic Inc. CS43L21-CNZR	24 b	Serial	Audio DAC	2.63 V	1.65 V	85 °C	-40 °C	2	Surface Mount	Analog and Digital	32-QFN (5x5)	32-VFQFN Exposed Pad	96 kHz
Cirrus Logic Inc. CDB43L21		I2C SPI											96 kHz	24	Board(s)	Voltage	2	CS43L21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CS43L21 24 Bit 96k Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
