AANI-CH-0070
ActiveAbracon LLC

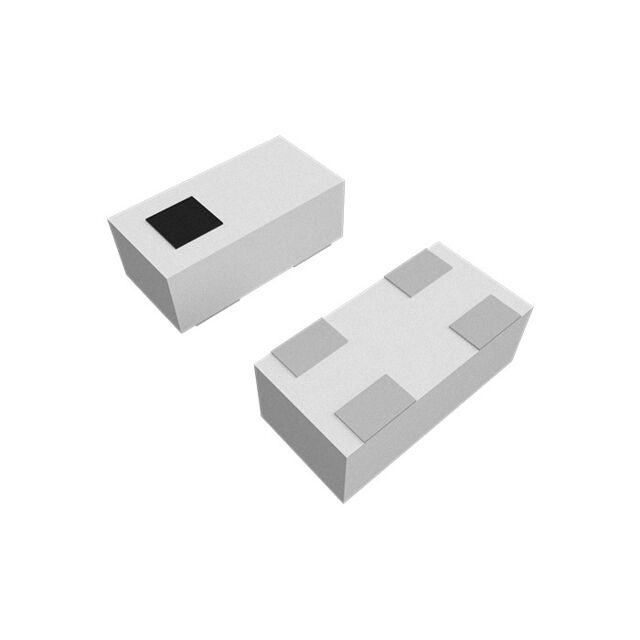

RF ANTENNA 2.4 GHZ CERAMIC CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AANI-CH-0070
ActiveAbracon LLC
RF ANTENNA 2.4 GHZ CERAMIC CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AANI-CH-0070 |
|---|---|
| Antenna Type | Chip |
| Applications | Zigbee™, ISM, M2M, IoT, Bluetooth, Wi-Fi |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.8 dBi |
| Height (Max) [Max] [z] | 0.016 in |
| Height (Max) [Max] [z] | 0.4 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| Return Loss | -7.2 dB |
| Termination | Solder |
| VSWR | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.24 | |||
| 25 | $ 0.22 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 10000 | $ 0.12 | ||
| 20000 | $ 0.11 | |||
| 30000 | $ 0.10 | |||
| 50000 | $ 0.10 | |||
Description
General part information
AANI-CH Series
RF ANTENNA Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ Chip Solder Surface Mount
