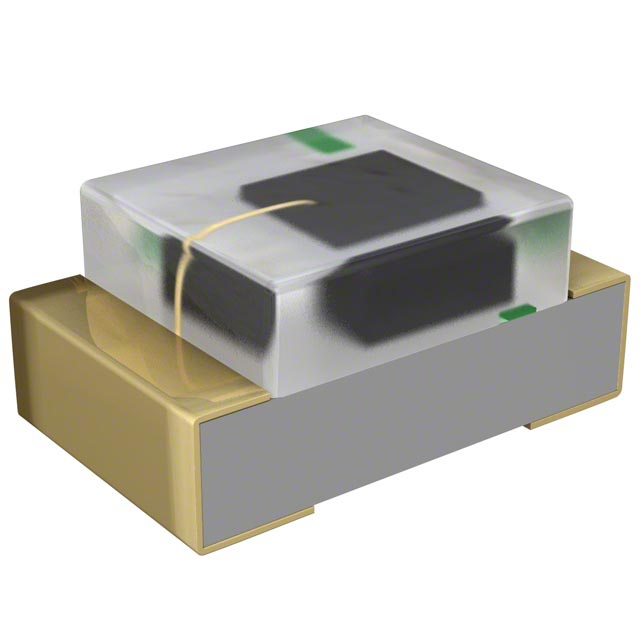

SFH 3710-3/4-Z
Activeams-OSRAM USA INC.
SENSOR PHOTO 570NM TOP VIEW 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 3710-3/4-Z
Activeams-OSRAM USA INC.
SENSOR PHOTO 570NM TOP VIEW 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 3710-3/4-Z |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 50 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0805 |
| Viewing Angle | 120 ° |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 5.5 V |
| Wavelength | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.42 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.98 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.42 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
| 6000 | $ 0.30 | |||
| 15000 | $ 0.29 | |||
| 30000 | $ 0.29 | |||
Description
General part information
SFH 3710 Series
Phototransistors 570nm Top View 0805 (2012 Metric)
