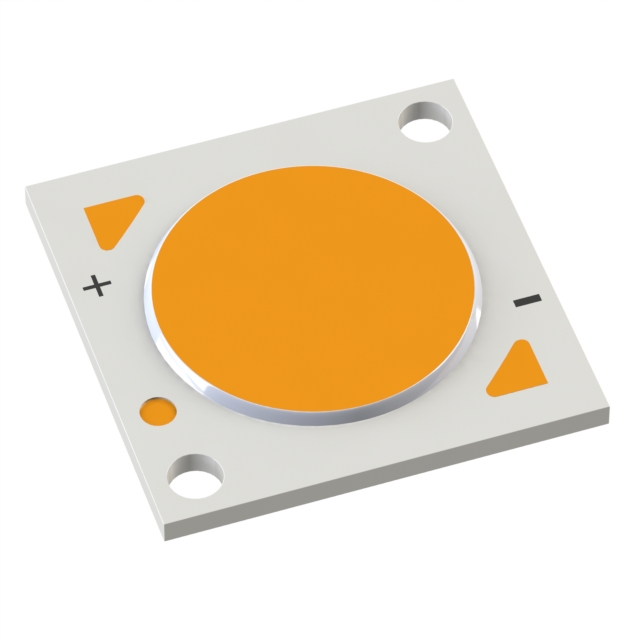

CXM-6-35-80-18-TA60-F7-3

Active

Luminus Devices Inc.

LED COB CXM-6 WARM WHT SQ 3500K

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED COB CXM-6 WARM WHT SQ 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	CXM-6-35-80-18-TA60-F7-3

CCT (K)	3500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	800 mA
Current - Test	300 mA
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6.3 mm
Lumens/Watt @ Current - Test	161 lm/W
Luminous Flux @ Current/Temperature	805 lm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	16.7 V

Part	Configuration	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	CCT (K)	Type	Current - Test	Current - Max [Max]	Temperature - Test	Lens Type	Viewing Angle	Height [z]	Light Emitting Surface (LES) [diameter]	Color	Voltage - Forward (Vf) (Typ)
Luminus Devices Inc. CXM-6-35-80-18-TA60-F7-3	Square	80	161 lm/W	805 lm	3500 K	Chip On Board (COB)	300 mA	800 mA	85 °C	Flat	120 °	1.4 mm	6.3 mm	Warm White	16.7 V
Luminus Devices Inc. CXM-6-50-95-36-TA60-F7-3	Square	95	135 lm/W	675 lm		Chip On Board (COB)	150 mA	400 mA	85 °C	Flat	120 °	1.4 mm	6.3 mm	Cool White	33.3 V
Luminus Devices Inc. CXM-6-27-90-36-TA60-F7-2	Square	90	133 lm/W	665 lm	2700 K	Chip On Board (COB)	150 mA	400 mA	85 °C	Flat	120 °	1.4 mm	6.3 mm	Warm White	33.3 V
Luminus Devices Inc. CXM-6-50-90-18-TA60-F7-3	Square	90	144 lm/W	720 lm		Chip On Board (COB)	300 mA	800 mA	85 °C	Flat	120 °	1.4 mm	6.3 mm	Cool White	16.7 V
Luminus Devices Inc. CXM-6-40-80-18-TA60-F7-3	Square	80	164 lm/W	820 lm	4000 K	Chip On Board (COB)	300 mA	800 mA	85 °C	Flat	120 °	1.4 mm	6.3 mm	Neutral White	16.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1800	$ 1.18

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CXM-6 Gen 6 White, Warm Square
