SCA100T-D02-PCB

Obsolete

Murata Power Solutions Inc.

EVAL BOARD SCA100T-D02

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

EVAL BOARD SCA100T-D02

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Range [Min]	Sensing Range [Max]	Sensor Type	Interface	Sensitivity	Supplied Contents	Utilized IC / Part	Package / Case	Axis [y]	Axis [x]	Measuring Range [Max]	Measuring Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating [Max]	Voltage Rating [Min]	Bandwidth [Max]	Bandwidth [Min]	Bandwidth	Measuring Range	Acceleration Range [Min]	Acceleration Range [Max]	Supplier Device Package	Sensitivity (mV/g)	Mounting Type	Output Type	Type
Murata Power Solutions Inc. SCA100T-D02-PCB	4.75 V	5.25 V	-90 °	90 °	Inclinometer	SPI	2 mg/digit	Board(s)	SCA100T-D02
Murata Power Solutions Inc. SCA100T-D01-1						SPI	4 mV/A			12-SMD L-Bend	Y	X	30 °	-30 °	-40 °C	125 °C	5.25 V	4.75 V	28 Hz	8 Hz
Murata Power Solutions Inc. SCA100T-D02-6						SPI	2 mg/digit			12-SMD Module	Y	X			-40 °C	125 °C	5.25 V	4.75 V			10 Hz	90 °
Murata Power Solutions Inc. SCA100T-D02-1						SPI	2 mg/digit			12-SMD L-Bend	Y	X			-40 °C	125 °C	5.25 V	4.75 V	28 Hz	8 Hz		90 °
Murata Power Solutions Inc. SCA100T-D07-1	4.75 V	5.25 V								12-SMD Gull Wing	Y	X			-40 °C	125 °C					400 Hz		-12 g	12 g	12-SMD	170 mV/g	Surface Mount	SPI	Analog Digital

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

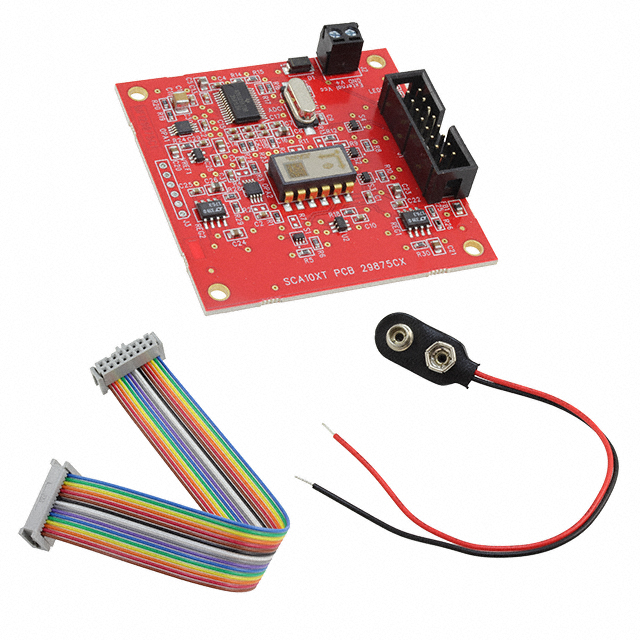

SCA100T-D02 - Inclinometer Sensor Evaluation Board

Technical documentation and resources

No documents available
