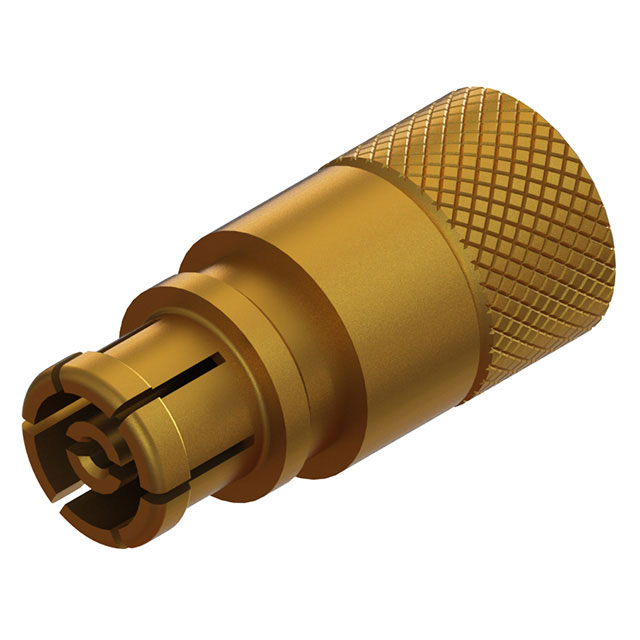

8032-4003

Obsolete

Amphenol SV Microwave

CONN TERMINATOR JACK SMPM 50 OHM

Search across all available documentation for this part.

Obsolete

Amphenol SV Microwave

CONN TERMINATOR JACK SMPM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	8032-4003

Body Finish	Gold
Body Material	Beryllium Copper
Connector Style	SMPM
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Contact Material	Frequency - Max [Max]	Body Material	Mounting Type	Contact Finish	Connector Type	Impedance	Body Finish	Dielectric Material	Connector Style
Amphenol SV Microwave 8032-4018	Beryllium Copper	40 GHz	Beryllium Copper	Cap Free Hanging	Gold	Female Socket Jack	50 Ohms	Gold	Polyetherimide (PEI)	SMPM
Amphenol SV Microwave 8032-4003	Beryllium Copper	40 GHz	Beryllium Copper	Cap Free Hanging	Gold	Female Socket Jack	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	SMPM
Amphenol SV Microwave 8032-4007	Beryllium Copper		Beryllium Copper Brass	Cap Free Hanging	Gold	Female Socket Jack		Gold	Polytetrafluoroethylene (PTFE)	SMPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminator Coax Connector Jack, Female Socket SMPM 50 Ohms

Technical documentation and resources

No documents available
