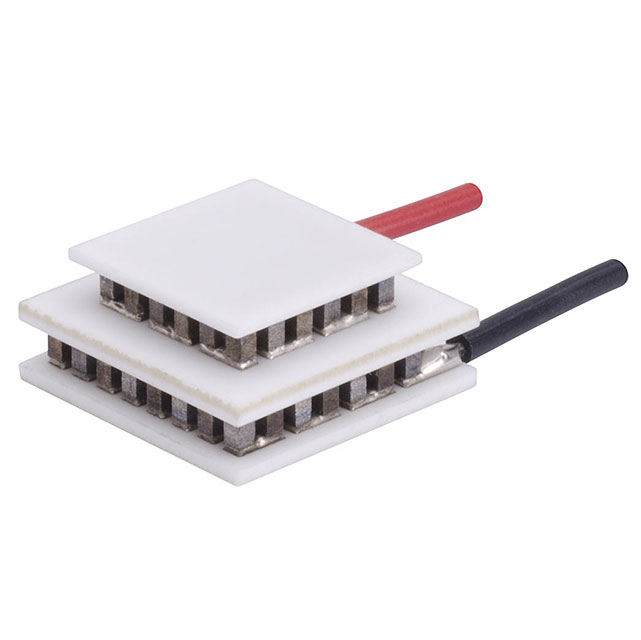

9340001-304

Active

Laird Thermal Systems, Inc.

PELTIR MS2,049,10,10,15,15,00,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,049,10,10,15,15,00,W8

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Features	Delta Tmax @ Th	Qmax @ Th	Number of Stages	Operating Temperature	Height [z]	Voltage - Max [Max]
Laird Thermal Systems, Inc. 9340001-304	15 mm	15 mm	2.2 A	Lead Wires Non-Sealed	87 °C	3.5 W	2	80 °C	6.81 mm	3.7 V
Laird Thermal Systems, Inc. 9340001-319	15 mm	15 mm	2.1 A	Lead Wires Non-Sealed	87 °C	3.4 W	2	80 °C	6.5 mm	3.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 3.5W @ 25°C 2.2 A 80°C

Technical documentation and resources
