MPQ8873GVE-XXXX-AEC1-Z
UnknownMONOLITHIC POWER SYSTEMS (MPS)
36V, 3A CONTINUOUS OUTPUT CURREN
Deep-Dive with AI
Search across all available documentation for this part.
MPQ8873GVE-XXXX-AEC1-Z
UnknownMONOLITHIC POWER SYSTEMS (MPS)
36V, 3A CONTINUOUS OUTPUT CURREN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ8873GVE-XXXX-AEC1-Z |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 250 kHz |
| Function | Step-Up, Step-Up/Step-Down, Step-Down |
| Grade | Automotive |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

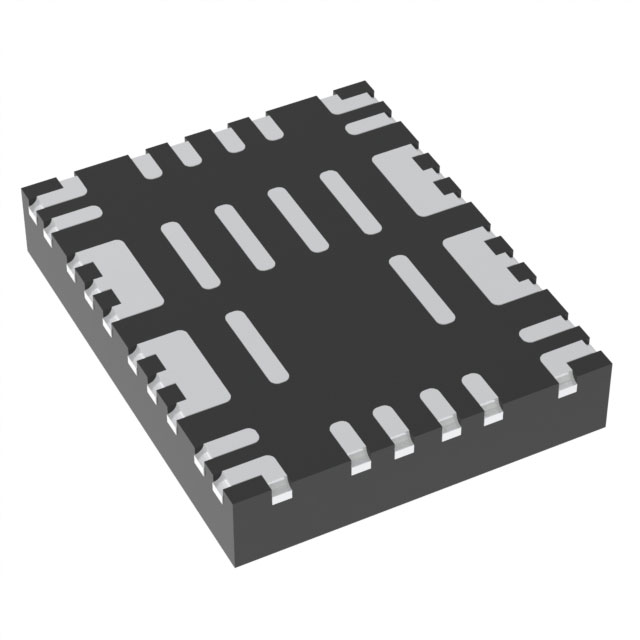

| Package / Case | 34-PowerVQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 34-QFN (4x5) |
| Synchronous Rectifier | True |
| Topology | Boost, Buck, Buck-Boost |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 30 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPQ8873 Series
Buck, Boost, Buck-Boost Switching Regulator IC Positive Adjustable 0.5V 1 Output 3A 34-PowerVQFN
Documents
Technical documentation and resources
No documents available
