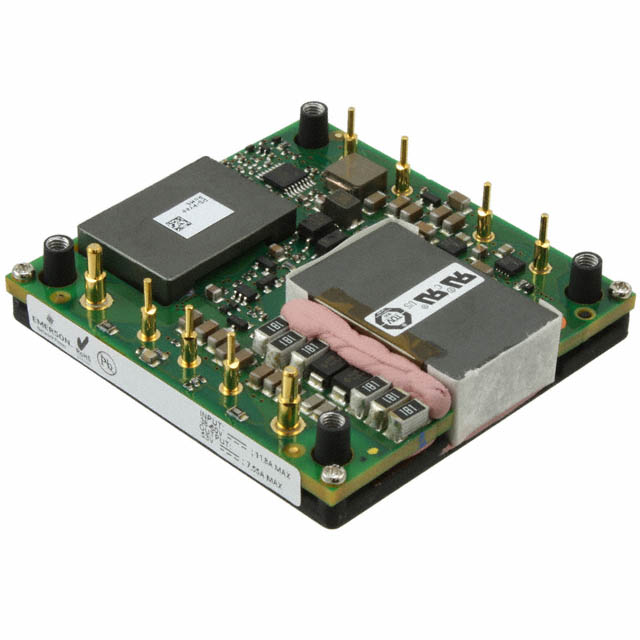

AEH08U48N-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 53V 400W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 53V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	AEH08U48N-6L

Applications	ITE (Commercial)
Approval Agency	cUL, TUV, UL
Control Features	Active Low, Enable
Current - Output (Max) [Max]	7.55 A
Efficiency	94 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-5 °C
Package / Case	Half Brick
Power (Watts)	400 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	58.4 mm
Size / Dimension [y]	2.3 "
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	38 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	53 V

Part	Power (Watts)	Efficiency	Type	Supplier Device Package	Control Features	Approval Agency	Package / Case	Applications	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]
ARTESYN / Advanced Energy AEH08U48N-6L	400 W	94 %	Isolated Module	Half Brick	Active Low Enable	cUL TUV UL	Half Brick	ITE (Commercial)	1	Through Hole	7.55 A	38 V	2250 VDC	Adjustable Output Remote On/Off Remote Sense	53 V	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	-5 °C	55 °C	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 110.76

General part information

Isolated Module DC DC Converter 1 Output 53V 7.55A 38V - 60V Input
