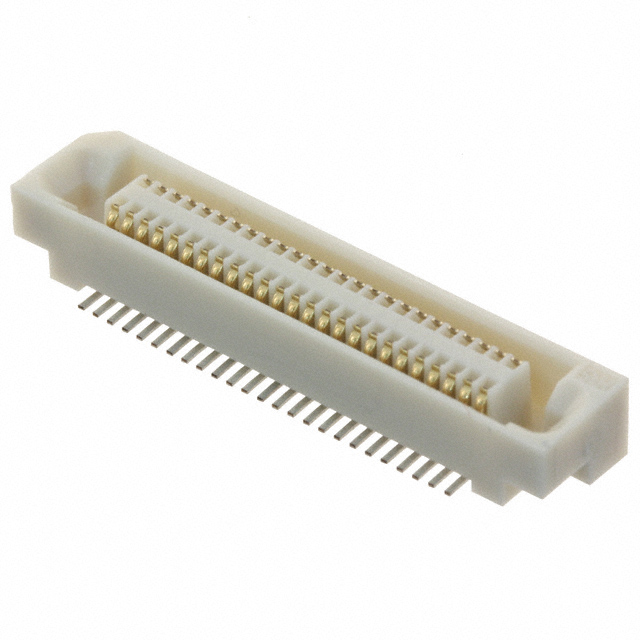

FX6-50P-0.8SV(71)

Active

Hirose Electric USA, Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX6-50P-0.8SV(71)

Active

Hirose Electric USA, Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX6-50P-0.8SV(71)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Mated Stacking Heights	7 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

FX6 Series

...

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Connector Type	Number of Positions	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX6-80S-0.8SV2	6 mm	0.236 in	7 mm 8 mm 9 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Center Strip Contacts Receptacle	80
Hirose Electric USA, Inc. FX6-100P-0.8SV1(71)	6 mm	0.236 in	6 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Header Outer Shroud Contacts	100
Hirose Electric USA, Inc. FX6-20P-0.8SV1(93)	6 mm	0.236 in	6 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Header Outer Shroud Contacts	20
Hirose Electric USA, Inc. FX6-50P-0.8SV2(89)	7.01 mm	0.276 in	7 mm 9 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Header Outer Shroud Contacts	50
Hirose Electric USA, Inc. FX6-60S-0.8SV2	6 mm	0.236 in	7 mm 8 mm 9 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Center Strip Contacts Receptacle	60
Hirose Electric USA, Inc. FX6-20S-0.8SV(93)			5 mm 6 mm 7 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Center Strip Contacts Receptacle	20	4 mm	0.157 "
Hirose Electric USA, Inc. FX6-100P-0.8SV1	6 mm	0.236 in	6 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Header Outer Shroud Contacts	100
Hirose Electric USA, Inc. FX6-80S-0.8SV(91)			5 mm 6 mm 7 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Center Strip Contacts Receptacle	80	4 mm	0.157 "
Hirose Electric USA, Inc. FX6-50P-0.8SV(71)			5 mm 7 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Header Outer Shroud Contacts	50	5 mm	0.197 in
Hirose Electric USA, Inc. FX6-100S-0.8SV(93)			5 mm 6 mm 7 mm	2	Board Guide	0.8 mm	0.031 in	Gold	Surface Mount	Center Strip Contacts Receptacle	100	4 mm	0.157 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.48
		19	$ 2.83
		38	$ 2.69
		57	$ 2.62
		114	$ 2.49
		266	$ 2.35
		513	$ 2.24
		1007	$ 2.14
		2508	$ 2.00

Description

General part information

FX6 Series

50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources
