H3DKH-1036G

Active

Assmann WSW Components

IDC CBL - HHKR10H/AE10G/HHPK10H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR10H/AE10G/HHPK10H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DKH-1036G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Strain Relief (Socket)
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Length [x]	Length [x]	Connector Type	Pitch - Cable	Pitch - Cable	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Number of Positions	Shielding	Color	Length	Length	Length
Assmann WSW Components H3DKH-1036G	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	3 ft	914.4 mm	Socket to Plug	0.05 "	1.27 mm	2	15 µin	0.38 µm	0.1 in	2.54 mm	IDC	Gold	10	Unshielded
Assmann WSW Components H3DKH-1018M	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	1.5 ft	457.2 mm	Socket to Plug	0.05 "	1.27 mm	2	15 µin	0.38 µm	0.1 in	2.54 mm	IDC	Gold	10	Unshielded	Multiple Ribbon
Assmann WSW Components H3DKH-1006M	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)			Socket to Plug	0.05 "	1.27 mm	2	15 µin	0.38 µm	0.1 in	2.54 mm	IDC	Gold	10	Unshielded	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

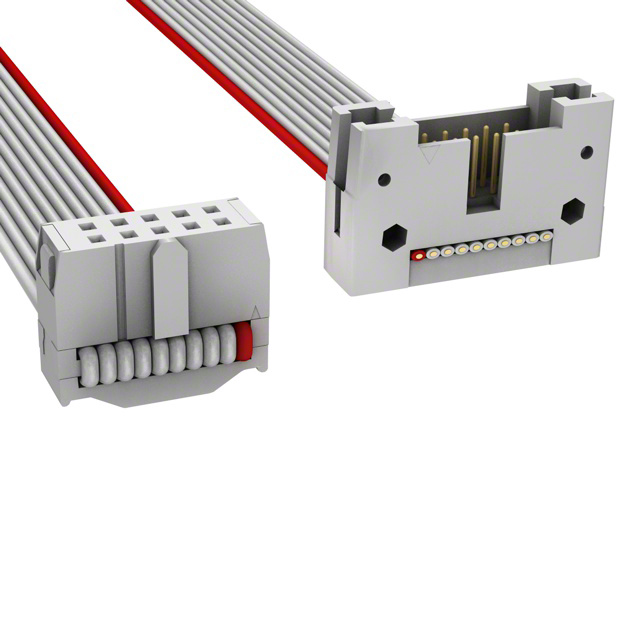

10 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
