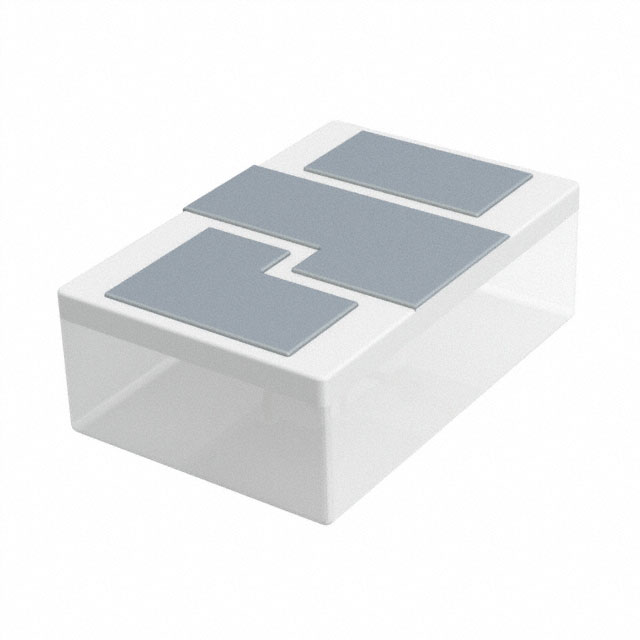

NJL6402R-2-TE1
ActiveNisshinbo Micro Devices Inc
SENSOR PHOTODIODE 800NM 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJL6402R-2-TE1
ActiveNisshinbo Micro Devices Inc
SENSOR PHOTODIODE 800NM 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJL6402R-2-TE1 |
|---|---|
| Active Area | 1 mm˛ |
| Color - Enhanced | Infrared(NIR)/Blue |
| Current - Dark (Typ) | 100 pA |
| Diode Type | PIN |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 2-SMD, No Lead |
| Response Time | 2 ns |
| Responsivity @ nm [custom] | 0.42 A/W |
| Responsivity @ nm [custom] | 0.47 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 35 V |
| Wavelength | 800 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 1.21 | |
| 6000 | $ 1.19 | |||
Description
General part information
NJL6402 Series
Photodiode 800nm 2ns 2-SMD, No Lead
