521-26-04-WH-010F

Active

CnC Tech, LLC

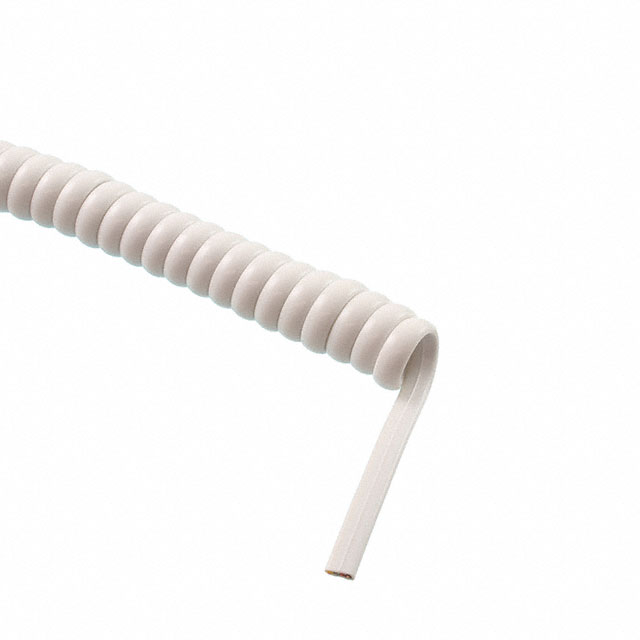

CABLE MOD COIL 4COND 10' PRE-CUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

521-26-04-WH-010F

Active

CnC Tech, LLC

CABLE MOD COIL 4COND 10' PRE-CUT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	521-26-04-WH-010F

Cable Height	0.097 in
Cable Height	2.46 mm
Cable Type	Coil
Cable Width	0.189 in
Cable Width	4.8 mm
Coil Diameter [diameter]	0.512 in
Coil Diameter [diameter]	13 mm
Conductor Material	Copper, Bare
Conductor Strand [x]	7
Conductor Strand [y]	0.0063 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length - Coil Extended	10 ft
Length - Coil Extended	3.05 m
Length - Coil Retracted [x]	2.07 ft
Length - Coil Retracted [x]	0.63 m
Number of Conductors	4
Shielding	Unshielded
Wire Gauge	26 AWG

521-26 Series

Part	Jacket (Insulation) Material	Length - Coil Retracted	Length - Coil Retracted	Cable Width	Cable Width	Length - Coil Extended [x]	Length - Coil Extended [x]	Conductor Material	Coil Diameter [diameter]	Coil Diameter [diameter]	Conductor Strand [x]	Conductor Strand [y]	Shielding	Number of Conductors	Cable Height	Cable Height	Wire Gauge	Cable Type	Jacket Color	Cable Width	Length - Coil Retracted [x]	Length - Coil Retracted [x]	Length - Coil Extended	Length - Coil Extended	Length - Coil Retracted
CnC Tech, LLC 521-26-06-WH-0005F	Poly-Vinyl Chloride (PVC)	1.77 ft	0.54 m	0.267 in	6.8 mm	1.52 m	5 ft	Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	6	0.097 in	2.46 mm	26 AWG	Coil
CnC Tech, LLC 521-26-04-SV-014F	Poly-Vinyl Chloride (PVC)			4.8 mm		4.27 m	14 ft	Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	4	0.097 in	2.46 mm	26 AWG	Coil	Silver	0.189 in	2.79 ft	0.85 m
CnC Tech, LLC 521-26-04-WH-010F	Poly-Vinyl Chloride (PVC)			4.8 mm				Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	4	0.097 in	2.46 mm	26 AWG	Coil		0.189 in	2.07 ft	0.63 m	10 ft	3.05 m
CnC Tech, LLC 521-26-04-SV-005F	Poly-Vinyl Chloride (PVC)			4.8 mm		1.52 m	5 ft	Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	4	0.097 in	2.46 mm	26 AWG	Coil	Silver	0.189 in	1.08 ft	0.33 m
CnC Tech, LLC 521-26-08-SV-0014F	Poly-Vinyl Chloride (PVC)			8.8 mm		4.27 m	14 ft	Copper Bare	0.591 in	15 mm	7	0.0063 in	Unshielded	8	0.097 in	2.46 mm	26 AWG	Coil	Silver	0.346 in	6.25 ft	1.9 m
CnC Tech, LLC 521-26-06-BL-0014F	Poly-Vinyl Chloride (PVC)			0.267 in	6.8 mm	4.27 m	14 ft	Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	6	0.097 in	2.46 mm	26 AWG	Coil	Black		4.43 ft	1.35 m
CnC Tech, LLC 521-26-08-WH-0007F	Poly-Vinyl Chloride (PVC)	3.28 ft		8.8 mm		2.13 m	7 ft	Copper Bare	0.591 in	15 mm	7	0.0063 in	Unshielded	8	0.097 in	2.46 mm	26 AWG	Coil		0.346 in					1 m
CnC Tech, LLC 521-26-06-BL-005F	Poly-Vinyl Chloride (PVC)	1.77 ft	0.54 m	0.267 in	6.8 mm	1.52 m	5 ft	Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	6	0.097 in	2.46 mm	26 AWG	Coil	Black
CnC Tech, LLC 521-26-08-WH-0010F	Poly-Vinyl Chloride (PVC)	1.5 m		8.8 mm				Copper Bare	0.591 in	15 mm	7	0.0063 in	Unshielded	8	0.097 in	2.46 mm	26 AWG	Coil		0.346 in	4.92 ft		10 ft	3.05 m
CnC Tech, LLC 521-26-04-BL-005F	Poly-Vinyl Chloride (PVC)			4.8 mm		1.52 m	5 ft	Copper Bare	0.512 in	13 mm	7	0.0063 in	Unshielded	4	0.097 in	2.46 mm	26 AWG	Coil	Black	0.189 in	1.08 ft	0.33 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.87
		5	$ 4.35
		10	$ 4.14
		25	$ 3.88
		50	$ 3.69

Description

General part information

521-26 Series

4 Conductor Modular Coil Cable White 10' (3.05m)
