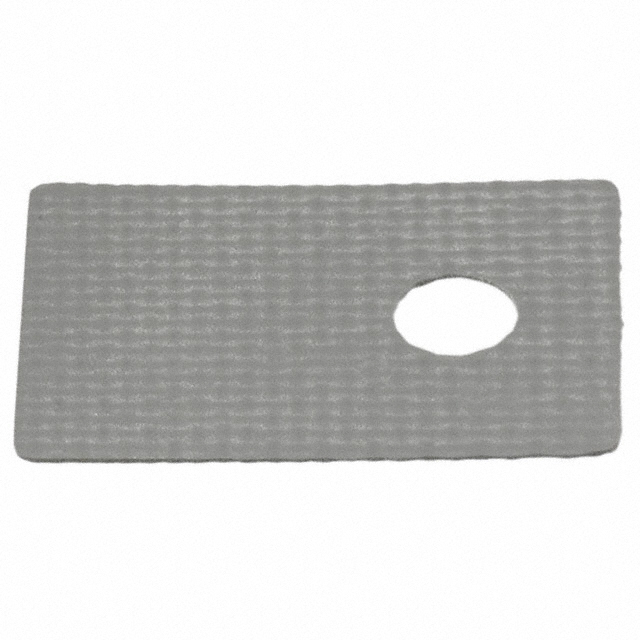

SP400-0.009-00-54

Active

Bergquist - Henkel

THERM PAD 19.05MMX12.7MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSil-Pad Metric Configurations Thermal Ordering Info +1

SP400-0.009-00-54

Active

Bergquist - Henkel

THERM PAD 19.05MMX12.7MM GRAY

Deep-Dive with AI

DocumentsSil-Pad Metric Configurations Thermal Ordering Info +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SP400-0.009-00-54

Backing, Carrier	Fiberglass
Color	Gray
Material	Silicone Rubber
Outline [x]	19.05 mm
Outline [y]	12.7 mm
Shape	Rectangular
Shelf Life	12 Months
Storage/Refrigeration Temperature [Max]	86 °F
Storage/Refrigeration Temperature [Min]	41 °F
Thermal Conductivity	0.9 W/m-K
Thermal Resistivity	1.4 °C/W
Thickness	0.229 mm
Thickness	0.009 in
Usage	TO-220

SP400 Series

Part	Thickness	Thickness	Shelf Life	Backing, Carrier	Color	Material	Shape	Outline [y]	Outline [x]	Usage	Thermal Conductivity	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thermal Resistivity	Adhesive	Shelf Life Start [custom]
Bergquist - Henkel SP400-0.007-00-50	0.178 mm	0.007 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rectangular	7.92 mm	11.1 mm	TO-126	0.9 W/m-K	41 °F	86 °F
Bergquist - Henkel SP400-0.009-00-56	0.229 mm	0.009 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rectangular	14.27 mm	21.72 mm	TO-220	0.9 W/m-K	41 °F	86 °F	1.4 °C/W
Bergquist - Henkel SP400-0.009-00-54	0.229 mm	0.009 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rectangular	12.7 mm	19.05 mm	TO-220	0.9 W/m-K	41 °F	86 °F	1.4 °C/W
Bergquist - Henkel SP400-0.009-00-22	0.229 mm	0.009 in	12 Months	Fiberglass	Gray	Silicone Rubber	Round	5.08 mm	15.87 mm	DO-4	0.9 W/m-K	41 °F	86 °F	1.4 °C/W
Bergquist - Henkel SP400-0.009-00-10	0.229 mm	0.009 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rhombus	25.4 mm	36.58 mm	TO-3	0.9 W/m-K	41 °F	86 °F	1.4 °C/W
Bergquist - Henkel SP400-0.009-AC-64	0.229 mm	0.009 in	6 Months	Fiberglass	Gray	Silicone Rubber	Rectangular	9.78 mm	12.7 mm	TO-220	0.9 W/m-K	41 °F	86 °F	1.4 °C/W	Adhesive - One Side
Bergquist - Henkel SP400-0.007-00-05	0.178 mm	0.007 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rhombus	28.96 mm	41.91 mm	TO-3	0.9 W/m-K	41 °F	86 °F	1.13 °C/W		Date Received
Bergquist - Henkel SP400-0.007-00-94	0.178 mm	0.007 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rectangular	30.15 mm	30.61 mm	RH-25	0.9 W/m-K	41 °F	86 °F	1.13 °C/W
Bergquist - Henkel SP400-0.009-00-02	0.229 mm	0.009 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rhombus	31.75 mm	45.21 mm	TO-3	0.9 W/m-K	41 °F	86 °F	1.4 °C/W
Bergquist - Henkel SP400-0.007-00-51	0.178 mm	0.007 in	12 Months	Fiberglass	Gray	Silicone Rubber	Rectangular	14.27 mm	17.45 mm	TO-220	0.9 W/m-K	41 °F	86 °F	1.13 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		10	$ 0.25
		50	$ 0.23
		100	$ 0.20
		500	$ 0.17
		1000	$ 0.13
		5000	$ 0.11

Description

General part information

SP400 Series

Thermal Pad Gray 19.05mm x 12.70mm Rectangular

Documents

Technical documentation and resources

Sil-Pad Metric Configurations

Datasheet

Thermal Ordering Info

Thermal Clad Selection Guide

Datasheet
