C01610H00601012

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 7POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610H00601012

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black, Blue
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Type	For Male Pins

Part	Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Number of Positions [custom]	Number of Positions [custom]	Note	Contact Type	Material Flammability Rating	Shell Material	Shielding	Housing Color	Type	Connector Type	Contact Size	Contact Shape
Amphenol Tuchel Industrial C01610H00601012	Keyed	Free Hanging (In-Line)	125 °C	-40 °C	IP65 IP67	Backshell Cable Clamp Coupling Nut	1	6	Contacts Not Included	Crimp	UL94 V-0	Polyamide (PA66) Nylon 6/6	Unshielded	Black Blue	For Male Pins	Plug Housing	1.6 mm	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

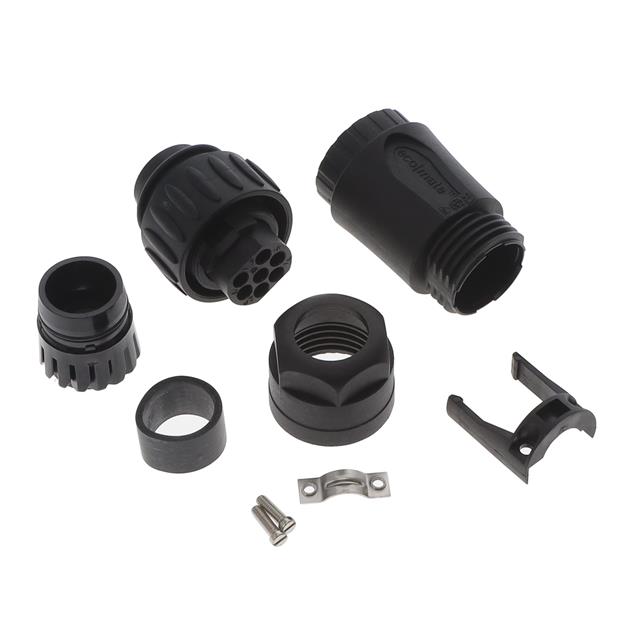

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
