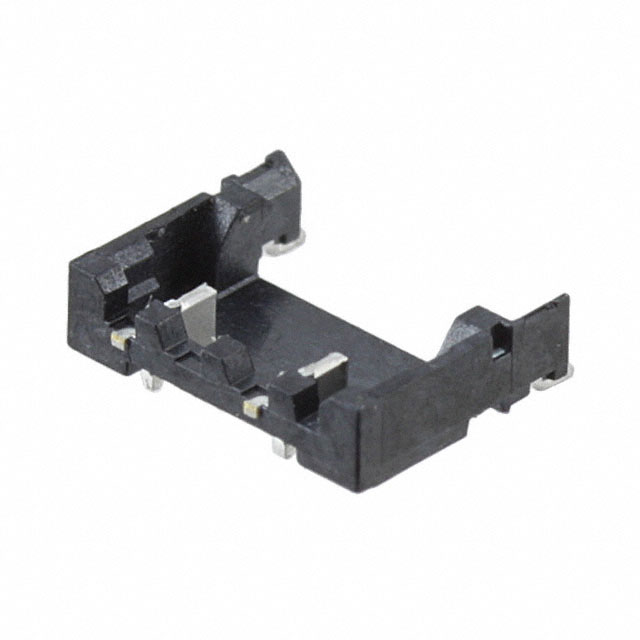

DF57H-2P-2.4V(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 2POS 2.4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF57 Insertion/Removal Instr

DF57H-2P-2.4V(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 2POS 2.4MM

Deep-Dive with AI

DocumentsDatasheet DF57 Insertion/Removal Instr

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF57H-2P-2.4V(21)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Swing Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height [z]	0.055 in
Insulation Height [z]	1.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	2.4 mm
Pitch - Mating	0.094 "
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

DF57H Series

Part	Insulation Height [z]	Insulation Height [z]	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Mounting Type	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Shrouding	Current Rating (Amps)	Number of Positions	Contact Finish - Post	Insulation Material	Style	Number of Positions Loaded	Contact Material	Number of Rows	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Pitch [x]	Pitch [x]	Contact Termination	Note	Color
Hirose Electric USA, Inc. DF57H-3P-1.2V(22)
Hirose Electric USA, Inc. DF57H-6P-1.2V(62)
Hirose Electric USA, Inc. DF57H-2P-1.2V(51)	0.055 in	1.4 mm	Solder	Rectangular	-55 °C	125 °C	Male Blade	Black	Surface Mount	Swing Lock	Header	0.047 in	1.2 mm	100 VAC	Unshrouded	Varies by Wire Gauge	2	Tin	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	All	Brass	1	UL94 V-0
Hirose Electric USA, Inc. DF57H-2P-2.4V(21)	0.055 in	1.4 mm	Solder	Rectangular	-35 °C	85 °C	Male Blade	Black	Surface Mount	Swing Lock	Header	0.094 "	2.4 mm		Unshrouded		2	Tin	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	All	Brass	1	UL94 V-0	1 µm	39.4 µin	Solder Retention
Hirose Electric USA, Inc. DF57H-3S-1.2C(08)					-35 °C	85 °C	Female Socket		Free Hanging (In-Line)	Swing Lock	Receptacle								Liquid Crystal Polymer (LCP)				1					1.2 mm	0.047 in	Crimp	Contacts Not Included	Natural
Hirose Electric USA, Inc. DF57H-4S-1.2C					-35 °C	85 °C	Female Socket		Free Hanging (In-Line)	Swing Lock	Receptacle						4		Polybutylene Terephthalate (PBT)				1					1.2 mm	0.047 in	Crimp	Contacts Not Included	White
Hirose Electric USA, Inc. DF57H-6P-1.2V(23)	0.055 in	1.4 mm	Solder	Rectangular	-55 °C	125 °C	Male Pin	Beige	Surface Mount	Swing Lock	Header	0.047 in	1.2 mm		Unshrouded		6	Tin	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	All	Brass	1	UL94 V-0
Hirose Electric USA, Inc. DF57H-5S-1.2C					-35 °C	85 °C	Female Socket		Free Hanging (In-Line)	Swing Lock	Receptacle								Polybutylene Terephthalate (PBT)				1					1.2 mm	0.047 in	Crimp	Contacts Not Included	White
Hirose Electric USA, Inc. DF57H-2S-1.2C(15)					-35 °C	85 °C	Female Socket		Free Hanging (In-Line)	Swing Lock	Receptacle						2		Liquid Crystal Polymer (LCP)				1					1.2 mm	0.047 in	Crimp	Contacts Not Included	Black
Hirose Electric USA, Inc. DF57H-3S-1.2C					-35 °C	85 °C	Female Socket		Free Hanging (In-Line)	Swing Lock	Receptacle								Polybutylene Terephthalate (PBT)				1					1.2 mm	0.047 in	Crimp	Contacts Not Included	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
	Digi-Reel®	1	$ 0.78
	Tape & Reel (TR)	5000	$ 0.37

Description

General part information

DF57H Series

Connector Header Surface Mount 2 position 0.094" (2.40mm)
