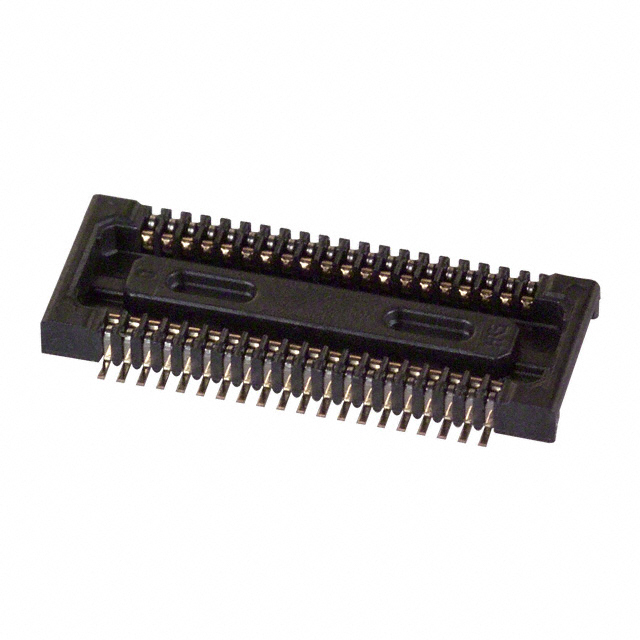

DF30FC-40DS-0.4V(81)

Active

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF30FC-40DS-0.4V(81)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.88 mm
Height Above Board	0.035 "
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Rows	Number of Positions	Mounting Type	Mated Stacking Heights	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF30FC-60DP-0.4V(82)	Gold	Header Center Strip Contacts	0.016 in	0.4 mm	0.8 mm	0.031 in	2	60	Surface Mount	0.9 mm
Hirose Electric USA, Inc. DF30FC-40DS-0.4V(81)	Gold	Receptacle Outer Shroud Contacts	0.016 in	0.4 mm			2	40	Surface Mount	0.9 mm	0.88 mm	0.035 "
Hirose Electric USA, Inc. DF30FC-30DP-0.4V(82)	Gold	Header Center Strip Contacts	0.016 in	0.4 mm	0.8 mm	0.031 in	2	30	Surface Mount	0.9 mm
Hirose Electric USA, Inc. DF30FC-60DP-0.4V(73)
Hirose Electric USA, Inc. DF30FC-20DP-0.4V(81)	Gold	Header Center Strip Contacts	0.016 in	0.4 mm	0.8 mm	0.031 in	2	20	Surface Mount	0.9 mm
Hirose Electric USA, Inc. DF30FC-40DP-0.4V(51)
Hirose Electric USA, Inc. DF30FC-60DS-0.4V(82)	Gold	Receptacle Outer Shroud Contacts	0.016 in	0.4 mm			2	60	Surface Mount	0.9 mm	0.88 mm	0.035 "
Hirose Electric USA, Inc. DF30FC-20DS-0.4V(82)	Gold	Receptacle Outer Shroud Contacts	0.016 in	0.4 mm			2	20	Surface Mount	0.9 mm	0.88 mm	0.035 "
Hirose Electric USA, Inc. DF30FC-60DS-0.4V(81)	Gold	Receptacle Outer Shroud Contacts	0.016 in	0.4 mm			2	60	Surface Mount	0.9 mm	0.88 mm	0.035 "
Hirose Electric USA, Inc. DF30FC-44DS-0.4V(58)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
