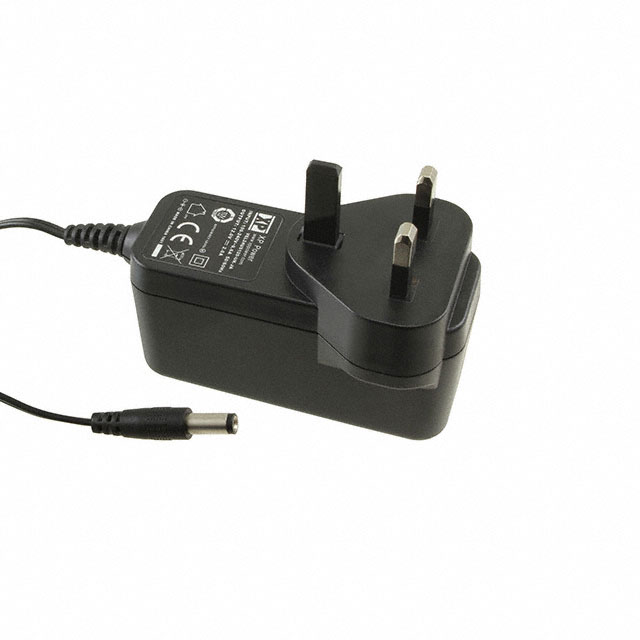

VEL18US120-UK-JA

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 12V 18W

Search across all available documentation for this part.

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 12V 18W

Technical Specifications

Parameters and characteristics for this part

Part	Standard Number	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Input Connector	Polarization	Current - Output (Max) [Max]	Form	No Load Power Consumption	Region Utilized	Applications	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector	Output Connector [diameter]	Output Connector [z]	Weight	Weight	Voltage - Output	Power (Watts)
XP POWER VEL18US120-UK-JA	62368-1	CoC Tier 2 Level VI	90 VAC	264 VAC	Fixed Blade	1.5 m	59 in	49.5 mm	50 mm	1.95 in	1.97 "	3.54 in	90 mm	BS 1363	Positive Center	1.5 A	Wall Mount (Class II)	100 mW	United Kingdom	ITE (Commercial)	CB TUV UL	60 °C	0 °C	Barrel Plug	2.1 mm 5.5 mm	12 mm	0.188 lb	85.28 g	12 V	18 W
XP POWER VEL18US090-EU-JA	62368-1	CoC Tier 2 Level VI	90 VAC	264 VAC	Fixed Blade	1.5 m	59 in	34 mm	57.6 mm	1.34 in	2.26 "	3.54 in	90 mm	CEE 7/16	Positive Center	2 A	Wall Mount (Class II)	100 mW	Europe	ITE (Commercial)	CB TUV UL	60 °C	0 °C	Barrel Plug	2.1 mm 5.5 mm	12 mm	0.188 lb	85.28 g	9 V	18 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.66

General part information

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
