CS35-08IO4

Obsolete

IXYS

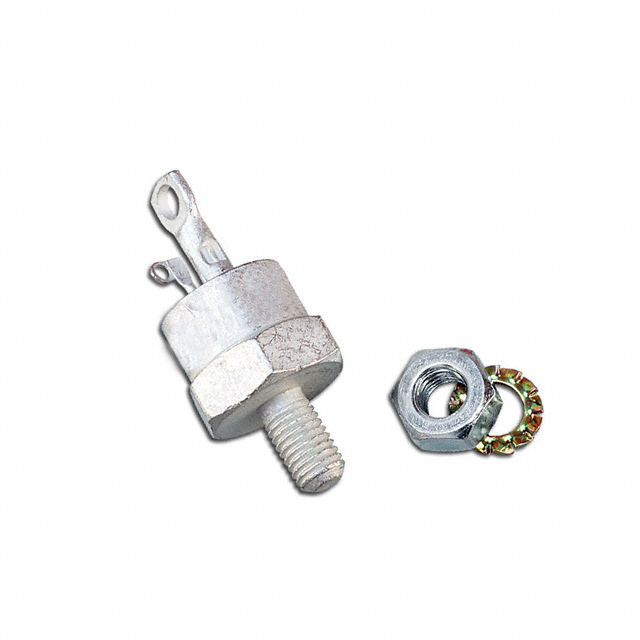

SCR 800V 120A TO208AC

Search across all available documentation for this part.

Obsolete

IXYS

SCR 800V 120A TO208AC

Technical Specifications

Parameters and characteristics for this part

Specification	CS35-08IO4

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	1340 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	1200 A
Current - Off State (Max) [Max]	10 mA
Current - On State (It (AV)) (Max) [Max]	69 A
Current - On State (It (RMS)) (Max)	120 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-65-3, Stud, TO-208AC
SCR Type	Standard Recovery
Supplier Device Package	TO-208AC (TO-65)
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	800 V
Voltage - On State (Vtm) (Max) [Max]	1.5 V

Part	SCR Type	Current - Off State (Max) [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max] [x]	Voltage - On State (Vtm) (Max) [Max]	Package / Case	Voltage - Off State	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]
IXYS CS35-12IO4	Standard Recovery	10 mA	TO-208AC (TO-65)	Chassis Stud Mount	125 °C	-40 °C	80 mA	100 mA	1.5 V	Stud TO-208AC TO-65-3	1.2 kV	120 A	1200 A	1340 A	69 A	1.5 V
IXYS CS35-08IO4	Standard Recovery	10 mA	TO-208AC (TO-65)	Chassis Stud Mount	125 °C	-40 °C	80 mA	100 mA	1.5 V	Stud TO-208AC TO-65-3	800 V	120 A	1200 A	1340 A	69 A	1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR 800 V 120 A Standard Recovery Chassis, Stud Mount TO-208AC (TO-65)
