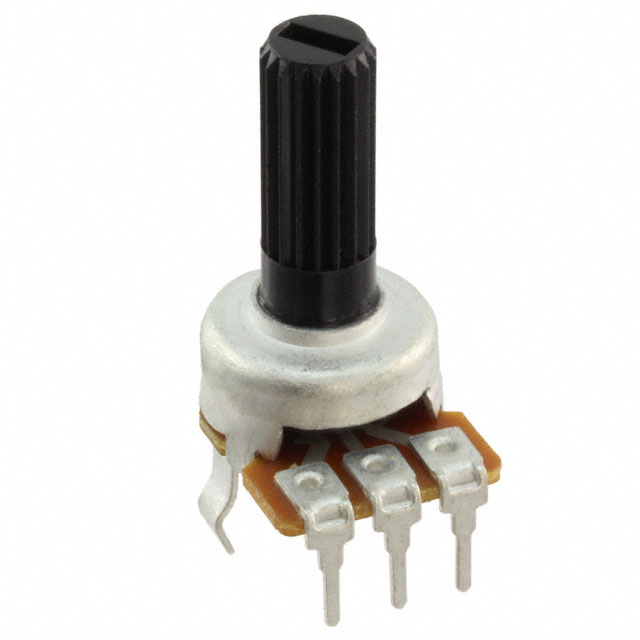

P120PK-Y25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Resistance (Ohms)	Power (Watts)	Power (Watts)	Mounting Type	Taper	Adjustment Type	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Number of Gangs	Termination Style	Actuator Type	Resistive Material	Actuator Length [z]	Actuator Length [z]	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)	Size - Body [diameter]	Size - Body [diameter]
TT Electronics/BI P120PK-F04BR10K	1	10k	0.05 W	50 mW	Snap In Through Hole	Linear	Top Adjustment	20 %	0.236 in	6 mm	300 ░	1	Board Locks PC Pins	Flatted	Conductive Plastic	4 mm	0.157 in
TT Electronics/BI P120PK-Y25BR5K	1		0.05 W	50 mW	Snap In Through Hole	Linear	Top Adjustment	20 %	0.236 in	6 mm	300 ░	1	Board Locks PC Pins	Knurled	Conductive Plastic			0.984 in	25 mm	5 kOhms	12.4 mm	0.488 in
TT Electronics/BI P120PK-Y25BR10K	1	10k	0.05 W	50 mW	Snap In Through Hole	Linear	Top Adjustment	20 %	0.236 in	6 mm	300 ░	1	Board Locks PC Pins	Knurled	Conductive Plastic			0.984 in	25 mm		12.4 mm	0.488 in
TT Electronics/BI P120PK-Y20BR50K	1		0.05 W	50 mW	Snap In Through Hole	Linear	Top Adjustment	20 %	0.236 in	6 mm	300 ░	1	Board Locks PC Pins	Knurled	Conductive Plastic	20 mm	0.787 in			50 kOhms	12.4 mm	0.488 in
TT Electronics/BI P120PK-Y20BR100K	1		0.05 W	50 mW	Snap In Through Hole	Linear	Top Adjustment	20 %	0.236 in	6 mm	300 ░	1	Board Locks PC Pins	Knurled	Conductive Plastic	20 mm	0.787 in			100 kOhms	12.4 mm	0.488 in
TT Electronics/BI P120PK-Y20BR20K	1		0.05 W	50 mW	Snap In Through Hole	Linear	Top Adjustment	20 %	0.236 in	6 mm	300 ░	1	Board Locks PC Pins	Knurled	Conductive Plastic	20 mm	0.787 in			20 kOhms	12.4 mm	0.488 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
