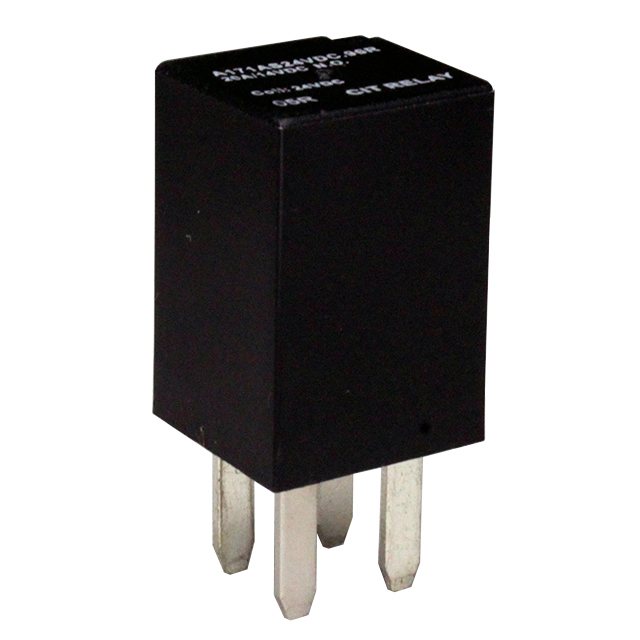

A171AHS12VDC.96R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage	Contact Rating (Current)	Operate Time	Coil Current	Mounting Type	Features	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Contact Form	Must Operate Voltage	Must Release Voltage	Coil Voltage	Coil Power	Coil Type	Coil Resistance
CIT Relay and Switch A171AHS12VDC.96R	75 VDC	30 A	10 ms	80 mA	Through Hole	Resistor Sealed - Fully	5 ms	85 °C	-40 °C	PC Pin	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	9 VDC	1.2 VDC	12 VDC	960 mW	Non Latching	150 Ohms
CIT Relay and Switch A171AS24VDC.96	75 VDC	30 A	10 ms	40 mA	Through Hole	Sealed - Fully	5 ms	85 °C	-40 °C	PC Pin	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	18 VDC	2.4 VDC	24 VDC	960 mW	Non Latching	600 Ohms
CIT Relay and Switch A171AS24VDC.96D	75 VDC	30 A	10 ms	40 mA	Through Hole	Diode Sealed - Fully	5 ms	85 °C	-40 °C	PC Pin	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	18 VDC	2.4 VDC	24 VDC	960 mW	Non Latching	600 Ohms
CIT Relay and Switch A171AHS24VDC.96R	75 VDC	30 A	10 ms	40 mA	Through Hole	Resistor Sealed - Fully	5 ms	85 °C	-40 °C	PC Pin	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	18 VDC	2.4 VDC	24 VDC	960 mW	Non Latching	600 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 30A 12V
