KC25A9.501NLS

Active

E-Switch

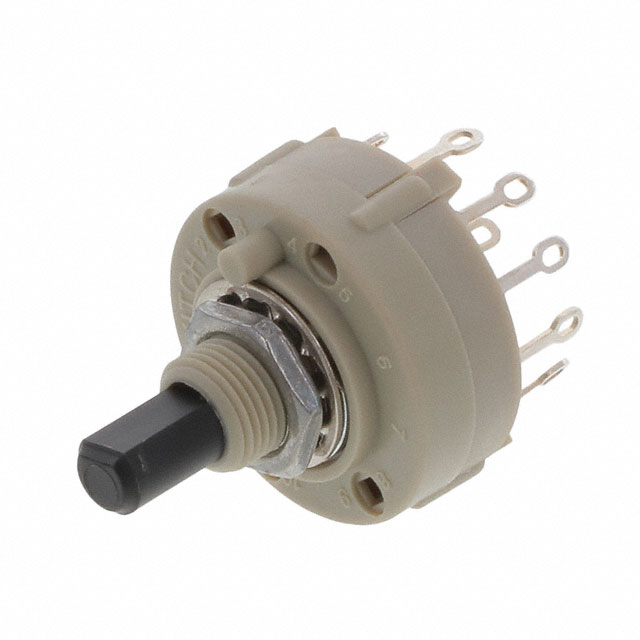

SWITCH ROTARY 5POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 5POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC25A9.501NLS

Actuator Length [x]	9.5 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	DP5T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel [z]	18.5 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	2
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type [diameter]	Actuator Type	Actuator Length [x]	Contact Finish	Contact Timing	Circuit per Deck	Index Stops	Current Rating (Amps)	Depth Behind Panel [z]	Number of Decks [custom]	Voltage Rating - AC	Angle of Throw	Contact Material	Number of Poles per Deck
E-Switch KC25A9.501NLS	Solder Lug	9.8 mm	6.35 mm	Flatted	9.5 mm	Silver	Non-Shorting	DP5T	Fixed	350 mA	18.5 mm	1	125 V	30 °	Copper Alloy	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 5 Position DP5T 350mA (AC) 125 VAC Panel Mount
